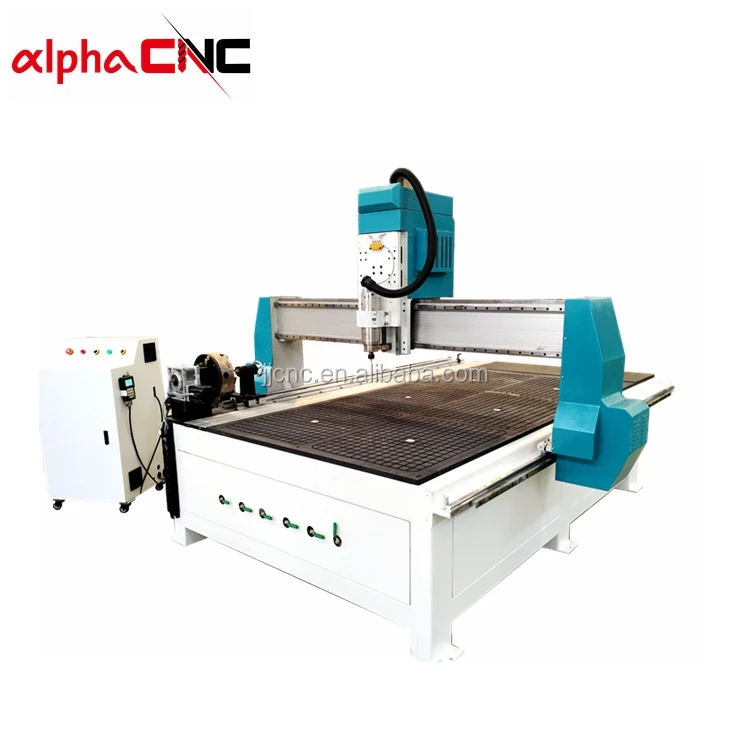

For Carpentry Furniture Making CNC Router 4 Axis Rotary Axis 3d Wood Carving CNC Router With Vacuum Function

FOB Reference Price:Get Latest Price
$4,500.00 - $7,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Model Number:
ABR-1325-200-V
Voltage:
220V/380V
Dimension(L*W*H):
3200*1840*1900mm
Certification:
CE ISO9001
Control system:
Mach 3 or DSP
Spindle:
3-7kw spindle
Application:
MDF WOOD ACRYLIC ALUMINUM
Motor:
Stepper motor/Servo motor
Driving system:
Leadshine/Yako
Software:
ARTCAM/ASPIR
Inverter:
DELTA
Spindle speed:
0-24000RPM
Keywords:
CNC ROUTER
Rotary axis:
0-300mm
Weight:
1800kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power(W):
3-7kw
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
CNC Router is packed in a plywood case
Port
Qingdao
Lead Time :
10 working days
Video Description
Product Description

For Carpentry Furniture Making CNC Router 4 Axis Rotary Axis 3d Wood Carving CNC Router With Vacuum Function


Product Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Main Features

▷ 1300*2500mm, 1500*3000mm, and 2000*3000mm standard sizes (Special sizes available upon request.)
▷Rotary axis 80-300mm
▷ 3-7.5kw high-frequency collet spindle
▷Brushless microstepper motors.
▷ Automatic tool calibration easy and accurate “Z” zero position for single and multiple tool changes
▷ Multifunction Vaccum and Aluminum T-Slot table
▷ Easy to use Mach 3 controller  with all industry standard CAD/CAM software

Descriptions
                                                                     Parameters
Model
ABP-1325
BP-1530
BP-2030
BP-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
50000mm/min
Max. Working Speed
20000mm/min
Spindle Power
3kw, 4.5kw, 6kw, 7kw
Spindle Speed
0-18000,  0-24000RPM
Drive Motors
Stepper motor and driver(Yaskawa servo motor optional)
Working Voltage
Custom made
Command Language
G Code
Operating System
Mach 3 (DSP or Nc-studio optional)
Computer Interface
USB interface
Inverter
Taiwan DELTA(Fuling optional)
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Sample
Detailed Images

4-Axis rotary table

Alpha’s 4-Axis rotary table assembly comes complete with a 3-jaw chuck, tail stock, and linear guide track for easy tail stock movement and center alignment. The addition of Techno's 4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.
(Alpha has 0-80mm, 0-100mm, 0-150mm, 0-200mm diameter rotary axis for your choice)

High Frequency Powerful spindle

The High quality BP series CNC Router machine comes standard with 3.2kw high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

Machine Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

Mach 3 controller (Ethernet interface)

Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.

Drive Motors

The High Quality BP Series CNC Router utilizes AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance — therefore, reducing any maintenance downtime.

Hiwin square rail&High quality helical rack pinion

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality helical rack pinion, makes it high precision.

CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

Vacuum and T-slot profile table

The High quality BP CNC Router has a 1 inch thick phenolic vacuum table surface mounted onto the steel base frame, keeping a rigid and consistent platform for your sheets and parts to be supported.
The vacuum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing, (which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.

Vectric Aspire Software

Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.

Optional Parts

CNC Router Vacuum Pumps

5.5kw (totally enclosed fan-cooled). Rotary Vane Vacuum Pump.


Dust Collector

3kw double bags dust collector, which is powerful enough for collect the. It will make your workshop without dust.

Oil mist Coolant System

The  Oil mist Coolant System is ideal for coolant tools for cutting metal. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

Customer
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
2000KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
