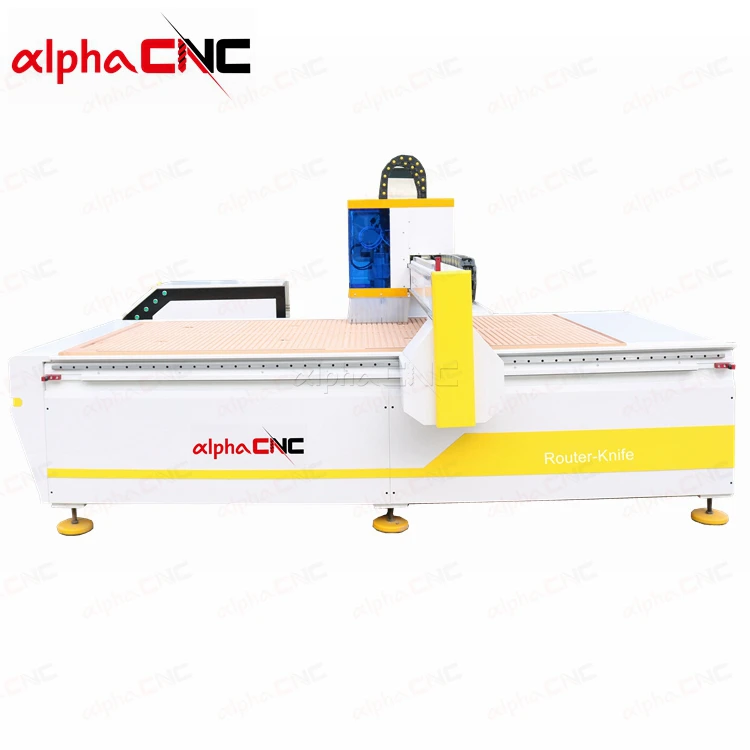

Spindle+Oscillating knife+Tangential Knife+Kiss cut+Crease+CCD Graphics and Print Finishing Sign making CNC Router

FOB Reference Price:Get Latest Price
$8,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Model Number:
ARK-1325-CCD
Voltage:
220V/380V
Dimension(L*W*H):
3200*1840*1900mm
Certification:
CE ISO9001
Control system:
Mach 3/Nc-studio
Spindle:
3.5kw, 4.5kw, 6kw 7kw spindle
Application:
MDF/WOOD/ACRYLIC/ALUMINUM/Cardboard
Motor:
Stepper motor/Servo motor
Driving system:
Leadshine/Yako
Software:
ARTCAM/ASPIR
Inverter:
DELTA
Oscillating knife:
for option
Keywords:
CNC ROUTER
CCD:
for option
Weight:
1800kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power(W):
3-7kw
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
CNC Router is packed in a plywood case
Port
Qingdao
Lead Time :
10 working days
Product Description

Spindle+Oscillating knife+Tangential Knife+Kiss cut+Crease+CCD Graphics and Print Finishing Sign making CNC Router

Product Application

Digital finishers are being asked to do more including routing aluminum and acrylic and cutting/trimming paper, vinyl, foam board, coroplast, styrene and rubber. As a result, we challenged our engineering team to develop a CNC router that meets the traditional demands of the digital finishing industry while delivering overwhelming power to take on broader projects.

Alpha Router-Knife (ARK) series is an innovative hybrid CNC production system combining heavy-duty routing with fast knife cutting for processing the broadest range of materials in all print finishing, sign making, foam and graphics applications. Popular applications include:

# Graphics and Print Finishing - Cut-to-print using multiple tools for all materials
# Sign making - All types of 2D and 3D signs in woods, metals and plastics
 # Foam Packaging - 2D and 3D processing with router and knife tools
# Point of Purchase - Display stands, fixtures and fittings



Using our knife cutting systems you can process a wide range of materials including, but not limited to;
Carpet, Felt, Foam, Closed Cell Foam, Fiberglass Insulation, Composites, Gasket Materials, Rubber, Fabric, Honeycomb Cardboard, Single-ply Cloth/Fabric, Corrugated Cardboard/Paperboard, Snowboard, Corrugated Plastic, Leather Goods, wood veneer for inlay/marquetry artwork, Carbon fiber pre-preg laminates for aerospace, military, and automotive components, Vinyl and more…

Descriptions
                                                                     Parameters
ARKModel
ARK-1325
ARK-1530
ARK-2030
ARK-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
50000mm/min
Max. Working Speed
20000mm/min
Spindle Power
3kw, 4.5kw, 6kw, 7kw
Knife option
Oscillating knife, Tangential Knife, Kiss cut, Crease, Knife Options
CCD
CCD Camera for option
Drive Motors
Stepper motor and driver(Yaskawa servo motor optional)
Working Voltage
Custom made
Command Language
G Code
Operating System
Mach 3 (DSP or Nc-studio optional)
Computer Interface
USB interface
Inverter
Taiwan DELTA(Fuling optional)
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Sample
Detailed Images

Version+Knife+Spindle

(1) ALPHA VISION
Modular optical recognition system for multi-functional flatbed machines for industrial usage in exact-outline digital finishing processes.
(2) RECIPROCATING KNIFE
The EOT-2 is a processing unit for CNC machines to cut various materials such as cardboard, sealing materials, foils, corrugated cardboard, carbon fiber prepreg material, leather, rigid foam, and many others. It is a precise quality product made in Germany developed and produced by ECOCAM. A powerful oscillation motor moves the blade quickly up and down while an actuator rotates the blade in each direction of cutting. Thus, even strong thick materials con be cut precisely and quickly.
(3) ALPHA C KNIFE SYSTEM
Alpha CNC has developed our knife system using German-made units, giving customers a very high level of performance at an extremely affordable price point. Our knife system allows you to choose from many different blade types: Rotary, creasing, drag, kiss cut, spear, and many more.
(4) ROUTING SPINDLE
Comes standard with a 3.2KW Liquid-Cooled Industrial Spindle

High Frequency Powerful spindle

The knife system can be equipped with several different styles of knife head options and easily swapped to suit your needs.
Oscillating knife, Tangential Knife, Kiss cut, Crease

Machine Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

Mach 3 controller (Ethernet interface)

Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.

Vectric Aspire Software

Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.

Optional Parts

CNC Router Vacuum Pumps

5.5kw (totally enclosed fan-cooled). Rotary Vane Vacuum Pump.


Dust Collector

3kw double bags dust collector, which is powerful enough for collect the. It will make your workshop without dust.

Oil mist Coolant System

The  Oil mist Coolant System is ideal for coolant tools for cutting metal. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
1500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
