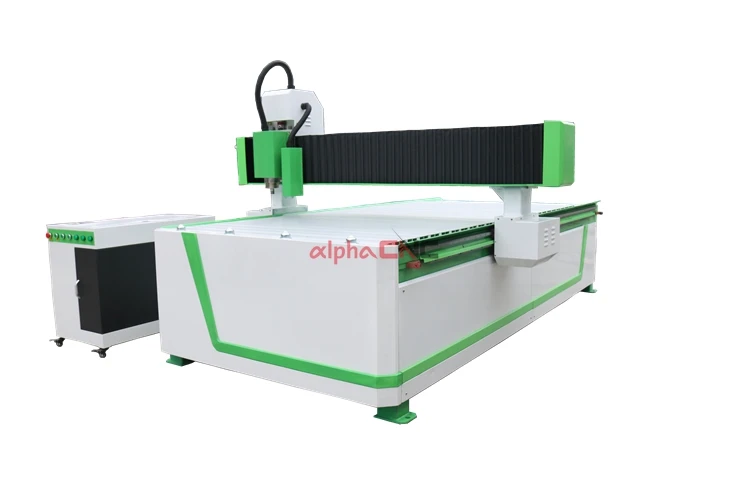

CCD CNC Router with Visual system with Camera for Sign Board Cutting, Print image edge cutting, Version
The AR2-CCD Vision Router System is among the most versatile CNC machining systems you will find on the market. The T-slot bed makes it very easy to place the sheet stock down for cutting and routing, and even setup custom jigs, fixtures and clamps for parts marking applications.
It can produce accurate, repeatable, cost-effective work in considerably less time than it takes to do t he same work by hand. Featuring our state-of-the-art Vision Controller and our graphically advanced Vision software, this machine is perfect for a wide variety of applications including milling, drilling, contouring, and routing.
In addition to routing applications such as signage and panels, these systems can be configured to produce high detail engraving and even automatically create ADA raised braille signage.
Application For ADA-compliant signage, Routing out wood signs, Cutout letters, Control panels, Cutting out sheets of material and 3D signs in sign foam, wood and more!
Side hanging machine structure heavy gantry support, 150*200mm gantry German ASK 20 linear guide+ Flange slider X axis with dust cover 450B stepper motor+1:4 patent gear reducer Z axis plate with precision machined aviation aluminum T6061/6063, CNC processing center precision manufacturing. Japan Omron limit photoelectric switch
Taiwan TBI ballscrew Patent pressing clamp, convenient to fix the material 3.5kw air coolant spindle Mach 3 or DSP controller Independent control cabinet CCD function for option
Aluminum T-slot table
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
X Y axis helical gear transmission
Z axis TBI ballscrew
Max. Rapid Travel Rate
Max. Working Speed
Brushless microstepper motors
Vectric Aspire/Type 3 /Artcam /Ucancam
Please kindly note the above configuration is standard configuration.
Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

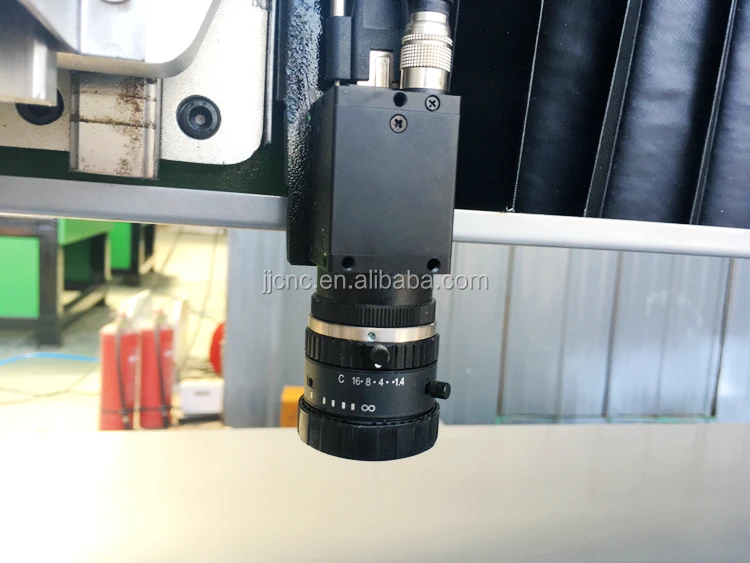

The machine comes with a camera to realize the Vision function.

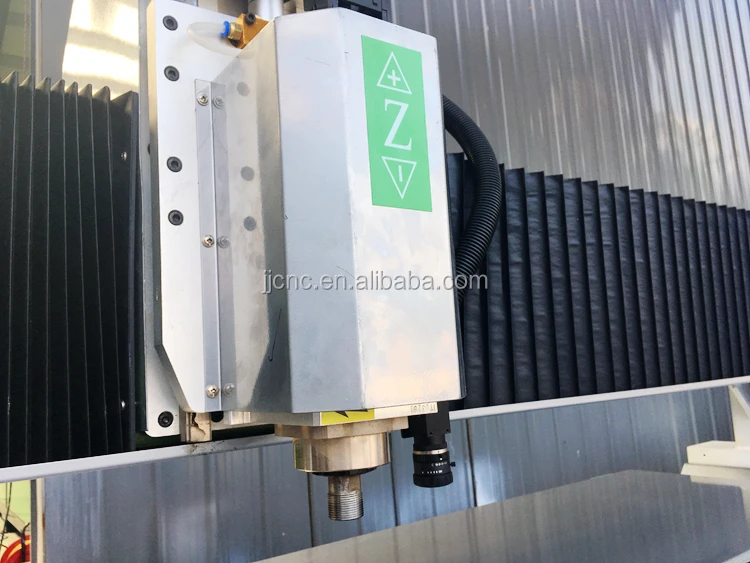

High Frequency Powerful spindle
The High quality Alpha AR2 series CNC Router machine comes standard with 3.5kw high frequency spindle. This precision spindle requires no maintenance. Fully programmable speeds from 6000 to 24000 RPM, more powerful and less noise.
Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life. The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability.
The machine is installed 4 pieces of motors.
Patent pressing clamp
The patent design pressing clamp is convenient for the user to assemble and disassemble the material.

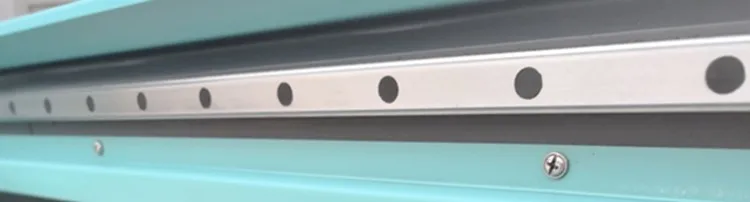

XYZ ASK Square Guide Rail(German)+Flange slider
HIGH PRECISION LINEAR GUIDE RAIL HIGH RIGIDITY OF “ASK" (German) Due to the increased stability and rigidity provide high precision movement of the gantryand high-speed drilling spindles in X, Y, Z. we achieve high machining accuracy and durability of the machine without loss of accuracy parameters.
Spindle Fixing plate
The spindle is fixed on the high quality aviation aluminum T061/6063 plate, the plate is machined by high precision CNC machining center.

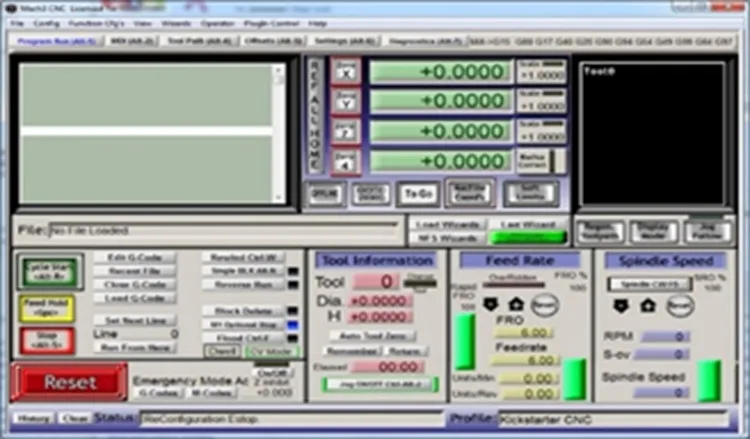

MACH 3 Control system < Ethernet interface >
Mach3 is designed to control the CNC machine. The program is installed on a computer connected to the control machine. Mach3 was developed by American programmers, both for professional and amateur use, so it is the most common software for CNC machines in the world. Using Mach3, it is possible to control the following types of machines: turning, milling, routers, laser and plasma plotter, engraving. We use Ethernet interface, high reliability, anti-interference.
XY Helical Rack Gear(Germany)
Unlike gears with straight teeth, oblique engages gradually, not immediately over the entire length. Helical gearing has no zone-pair gearing. In spur gear the load on the teeth is applied instantly. The teeth in helical gears are loaded gradually as you approach them in the area of gear meshing is always at least two pairs of teeth
1. high transmission efficiency. 2. high transmission accuracy, smooth movement, no creep phenomenon. The ball screw drive is basically rolling friction, and the frictional resistance is small. The frictional resistance has almost no relation with the speed of movement. 3. There is no free travel in the reverse direction. After the ball screw and nut are pre-tightened, the axial clearance can be eliminated. In this way, there is no dead zone in the reverse direction, which can improve the axial transmission accuracy and axial stiffness.
Vectric Aspire CADCAM software

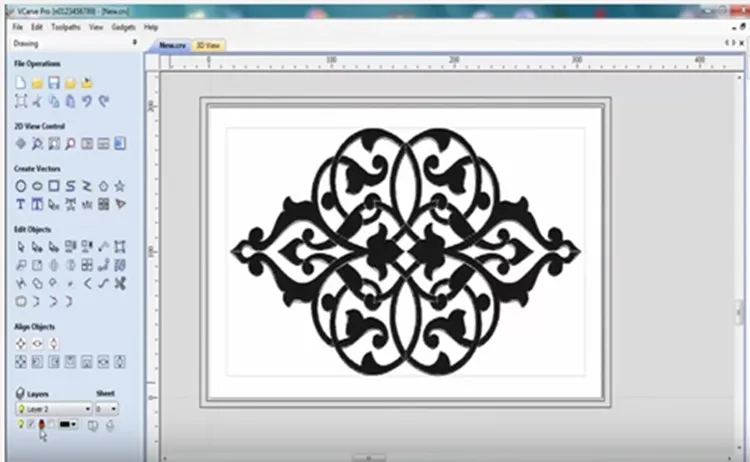

Aspire is built on the same plAR2orm as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.
CNC Tool Calibration

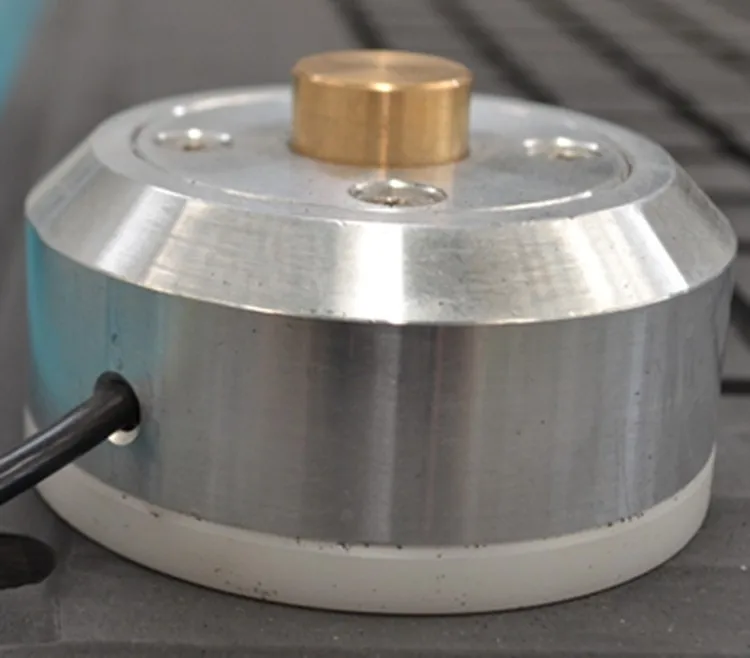

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

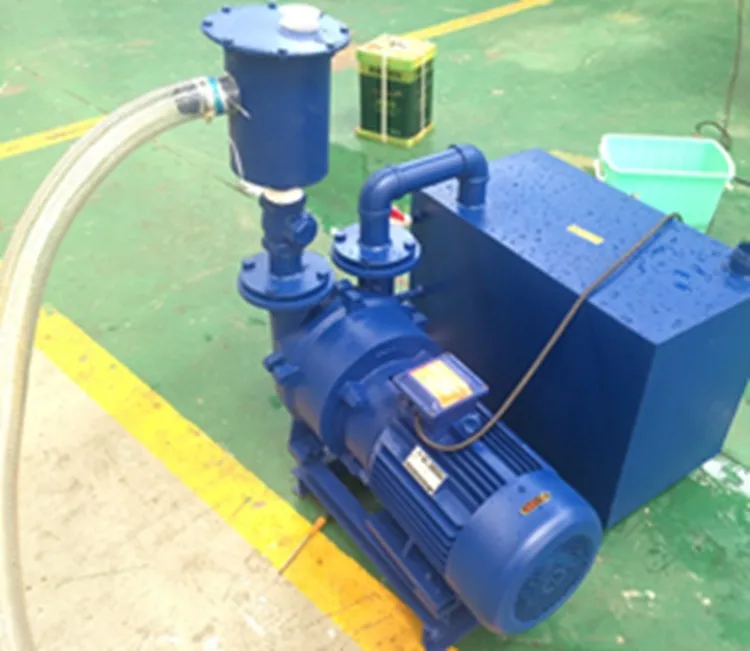

Vacuum sucking function
Comes with motor starter, vacuum gauge, filter, check valve and all necessary plumbing to connect to router. It is powerful to absorb the material.

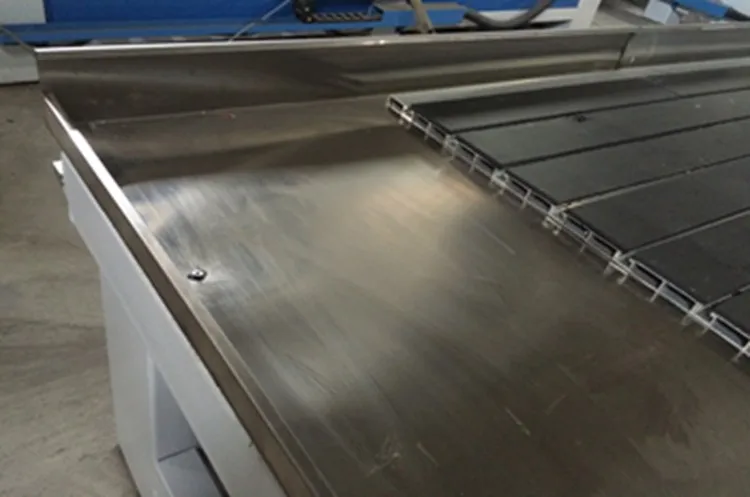

When engraving the hard material such as stone and steel, water is needed for cool the cutter. The water tank can collect the used water and lead the water to the specified bucket, to prevent dirty water from flowing directly to the ground.
Big dust collector with 2 bags, which is powerful enough for collect the. It will make your workshop without dust.
