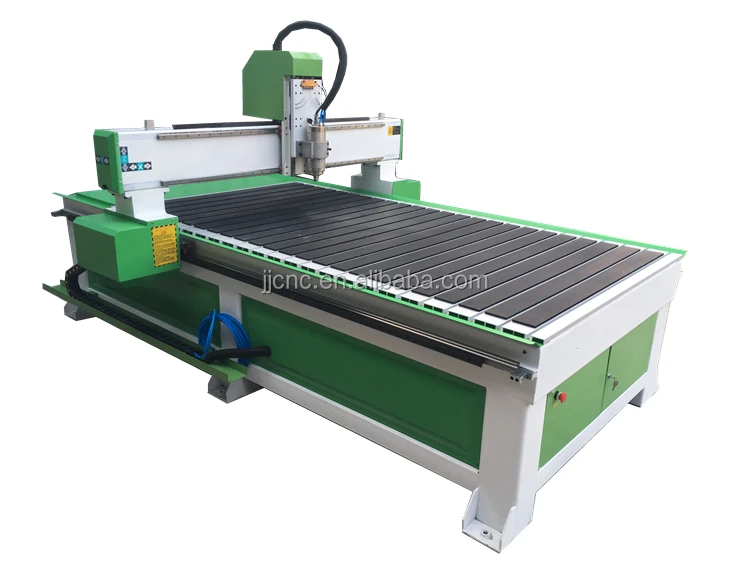

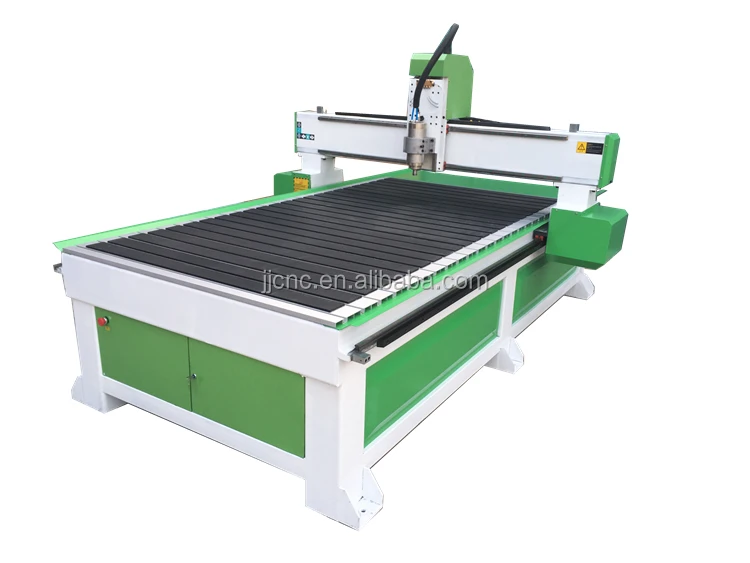

CNC router for Giant Scrabble-like lettering. Menu board. Designed for Madison Coffee and Tea

FOB Reference Price:Get Latest Price
$3,800.00 - $5,300.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha CNC
Model Number:
ABS-1325A
Voltage:
220V/380V
Dimension(L*W*H):
3200*1840*1900mm
Certification:
CE ISO9001
Control system:
Mach3/Nc-studio/DSP
Spindle:
Air Cooling/Water Cooling
Application:
MDF/ WOOD /ACRYLIC / SOFT METAL
Motor:
Stepper motor/servo motor
Spindle power:
3kw/4.5kw/6kw
Driving system:
Leadshine/Yako
Software:
Vectric Aspire/ARTCAM
Inverter:
Delta/ Fuling/Sunfar
Spindle speed:
0-24000RPM
Keywords:
CNC router for Giant Scrabble
Weight:
1000kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power(W):
3.2kw/4.5kw/6kw
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
CNC Router packed in a plywood case.
Port
Qingdao
Lead Time :
in 10 days
Product Description

CNC router for Giant Scrabble-like lettering. Menu board. Designed for Madison Coffee and Tea


Product Application

* Sign industry: Acrylic, plastic, ABS board, MDF etc.

*Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Main Features

#Patented elegant design

#Maintenance free Brushless micro-stepper motors

#User-friendly Mach 3

#Hiwin 20mm square rail

#Precision TBI ball screw drive on Z-Axis
#Maintenance free brushless Stepper motor
#Automatic tool calibration

Descriptions
                                                                     Parameters
Model
ABS-1325A
Working area
1300*2500mm
Accuracy
±0.03mm

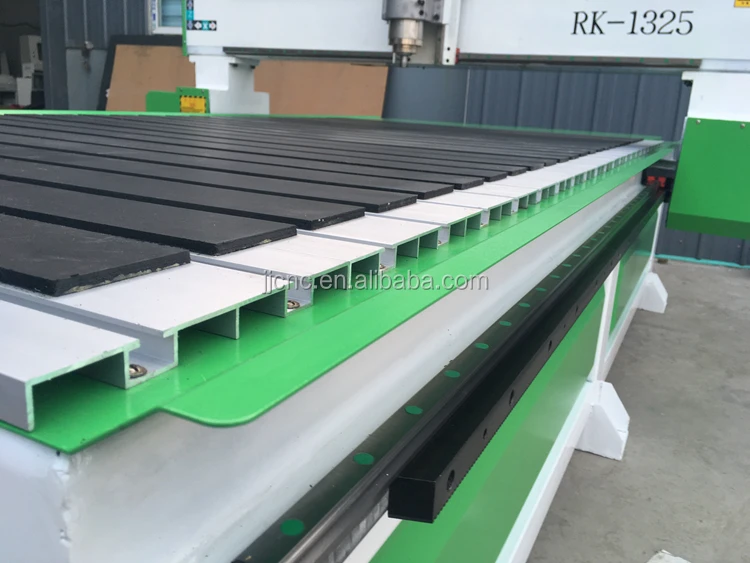

Table Surface
 Aluminum  and PVC T-slot
Frame
Thicken steel square tube structure
X, Y Structure
Gear and rack transmission, Taiwan HIWIN linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Max. Rapid Travel Rate
45000mm/min
Max. Working Speed
20000mm/min
Spindle Power
3.2kw spindle(4.5kw, 6kw for option)
Spindle Speed
0-24000RPM
Drive Motors
Leading shine stepper motor and driver(Yako driver for option)
Working Voltage
AC220V/50/60Hz,1PH (Option: 380V/415V/220V 3phase)
Command Language
G Code
Operating System
Mach 3(DSP or Nc-studio for option)
Computer Interface
USB interface
Inverter
Fuling(Delta for option)
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Sample
Detailed Images

Mach 3 Controller(Ethernet port)

Mach 3 turns a typical computer into a CNC machine controller. Ethernet port is the most stable of the Mach 3 controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.

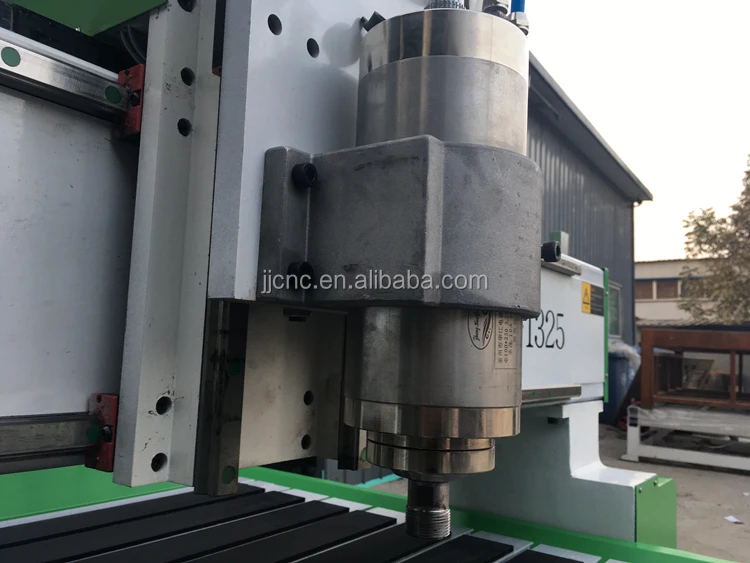

3.2kw high frequency Spindle

The Artisans Series machine comes standard with a 3.2kw  high frequency collet spindle. These precision spindles require no maintenance, use industry standard ER collets, fully programmable speeds from 6000 to 24000 RPM, and comes complete with vacuum hood / hose support system and wrenches.

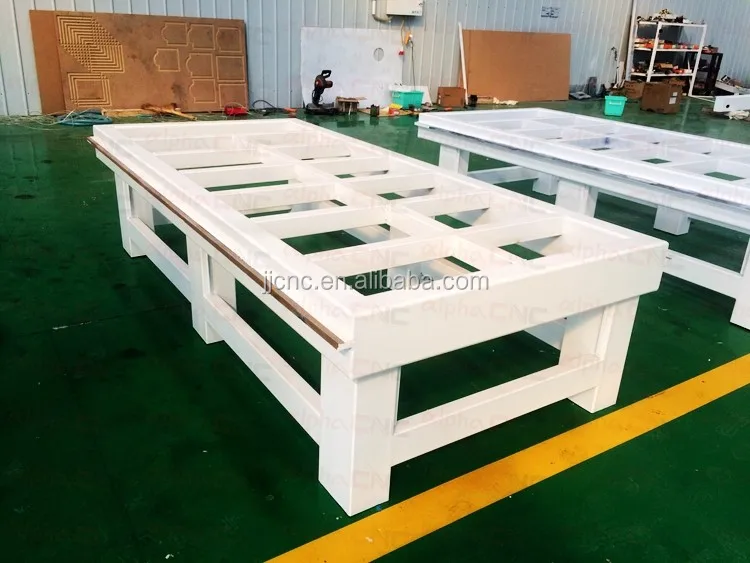

Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

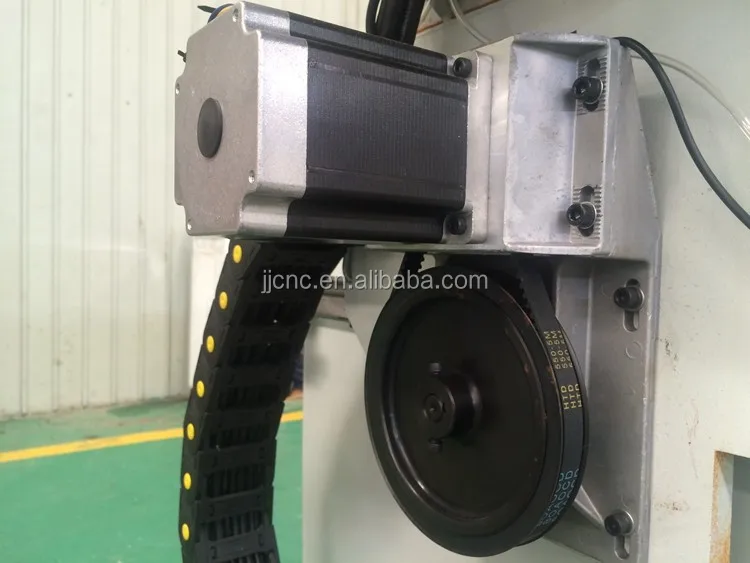

Drive Motors

The JJ Artisans Series CNC Router utilizes brushless microstepper motors. These motors require no regular maintenance — therefore, reducing any maintenance downtime!

Automatic tool calibration

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

Protector on Y Axis

The protector can product the square rail and the rack gear from dust, which will increase the service life of the machine.

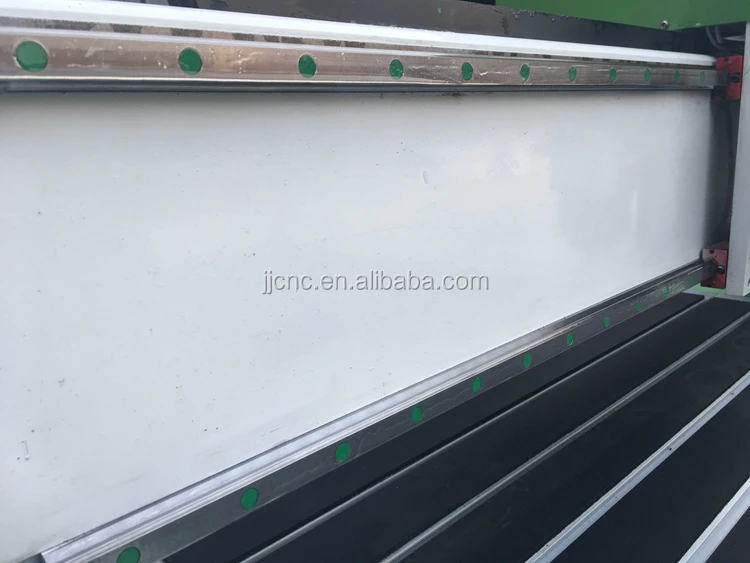

XYZ Axis Hiwin square rail

XYZ Axis Taiwan Hiwin square rail, the width is 20mm. It is More robust, more wear-resistant, durable than ordinary rail 3 times

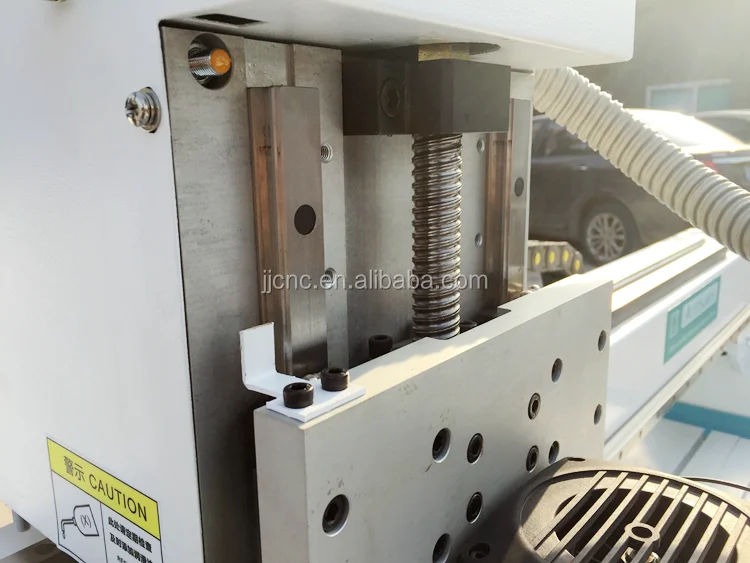

Z axis TBI ballscrew transmission

Imported high quality TBI ballscrew, which is high-precision, durable, long service life.

X Y Axis Helical gear rack

High hardness material, after strict heat treatment, high strength,  not easy to wear, not easy to deformation, to ensure the high speed of the machine.

Optional Parts

7.5kw (totally enclosed fan-cooled). Rotary Vane Vacuum Pump

Comes standard with motor starter, vacuum gauge, primary and secondary filter, check valve and all necessary plumbing to connect to router

4-Axis Rotary Axis

The addition of  4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

Dust collector

JJ offers 2 bags powerful vacuum cleaner, to ensure a clean and tidy workshop.

Customer Feedback
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
1500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha

Agent and distributor wanted all over the world!
