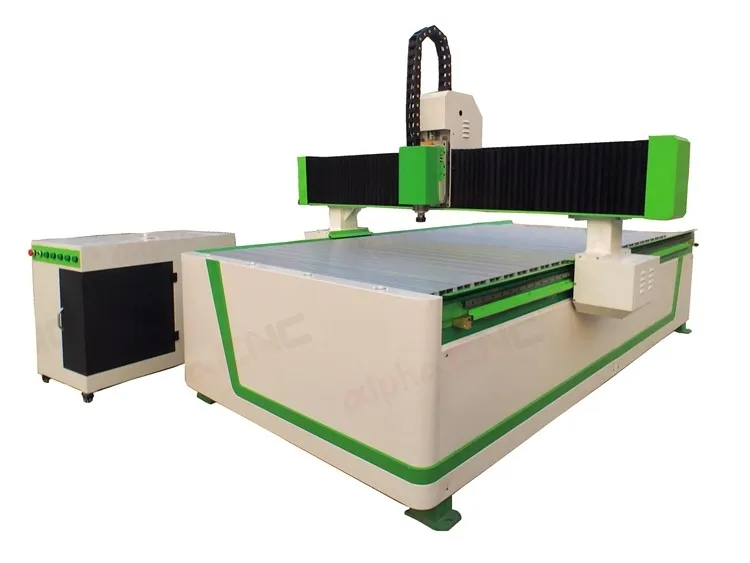

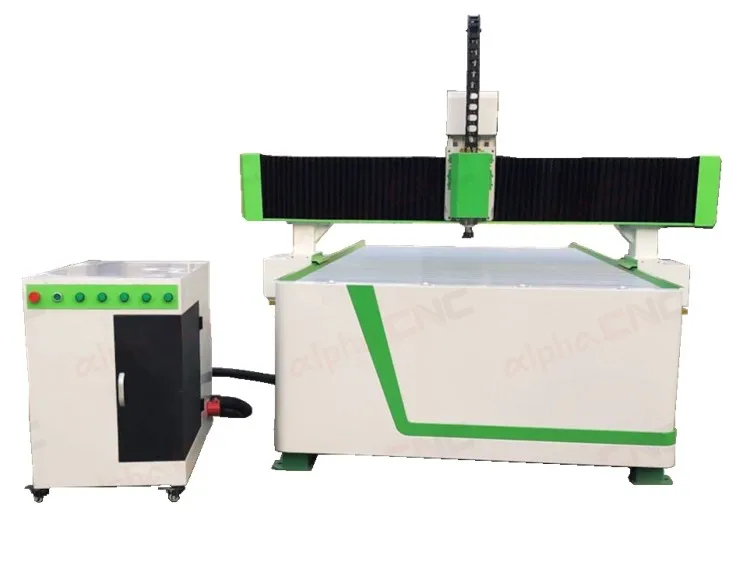

AR2-1325 CNC Router for advertising

FOB Reference Price:Get Latest Price
$4,500.00 - $5,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Model Number:
AR2-1325
Voltage:
AC380V/3PH/50Hz(option:220V) Customer made
Dimension(L*W*H):
1300*2500*200mm
Certification:
CE ISO9001
Control system:
Mach 3/DSP
Spindle:
3.5KW/4.5KW/6KW
Application:
MDF WOOD ACRYLIC ALUMINUM
Motor:
Stepper motor
Driving system:
Stepper--860
Software:
ARTCAM/ASPIR
Inverter:
DELTA
Spindle speed:
0-24000RPM
Keywords:
CNC ROUTER
Weight:
1500kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power(W):
3.5kw
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
CNC Router packed in the Plywood Case
Port
Qingdao
Lead Time :
10 working days
Product Description

Introduction:

The High Quality AR2 Series CNC Router features all steel construction, powerful spindle, German ASK linear rails with flange slider, German precision helical racks on the X and Y axes, with TBI ballscrew Z axis drive, brushless microstepper motors with a patant 1:4 gear reducer. X axis is with duct cover to prevent the transmission system from the dust. Controls with a very easy-to-use Mach 3 or DSP controller. The controller is so user-friendly that setup, installation and training is completed through our self-taught, step-by-step manuals. We guarantee you will be cutting parts the same day you connect power to the machine!


Main Features

Side hanging machine structure
heavy gantry support, 150*200mm gantry
German ASK 20 linear guide+ Flange slider
X axis with dust cover
450B stepper motor+1:4 patent gear reducer
Z axis plate with precision machined aviation aluminum T6061/6063, CNC processing center precision manufacturing.
   Japan Omron limit photoelectric switch

Taiwan TBI ballscrew
Patent pressing clamp, convenient to fix the material
3.5kw air coolant spindle
Mach 3 or DSP controller
Independent control cabinet
CCD function for option


Descriptions
                                                                     Parameters
Model
AR2-1325
Working area
1300*2500mm
Accuracy
±0.01/2000mm
Table Surface
Aluminum T-slot table

Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
X Y axis helical gear transmission
Z Structure
Z axis TBI ballscrew
Max. Rapid Travel Rate
30,000m/min

Max. Working Speed
20,000mm/min
Spindle Power
3.5kw spindle
Spindle Speed
0-24000RPM
Drive Motors
Brushless microstepper motors

Working Voltage
Custom made
Command Language
G Code
Operating System
Mach 3

Computer Interface
USB interface
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.


Sample
Detailed Images

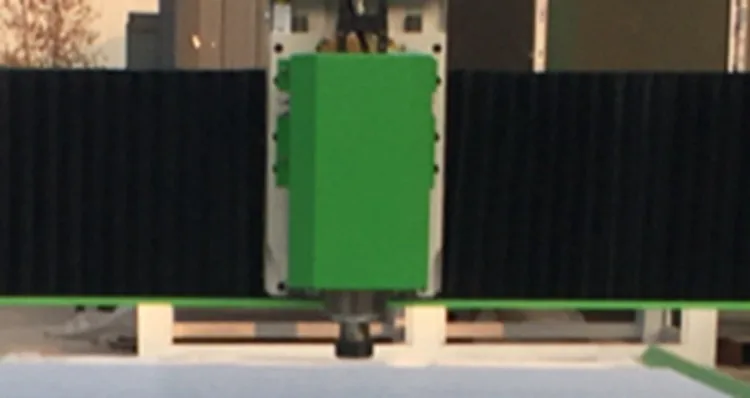

High Frequency Powerful spindle

The High quality Alpha AR2 series CNC Router machine comes standard with 3.5kw high frequency spindle. This precision spindle requires no maintenance. Fully programmable speeds from 6000 to 24000 RPM, more powerful and less noise.

Drive Motors

Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life.
The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability.

The machine is installed 4 pieces of motors.

Patent pressing clamp

The patent design pressing clamp is convenient for the user to assemble and disassemble the material.


XYZ ASK Square Guide Rail(German)+Flange slider

HIGH PRECISION LINEAR GUIDE RAIL HIGH RIGIDITY OF “ASK" (German)
Due to the increased stability and rigidity provide high precision movement of the gantryand high-speed drilling spindles in X, Y, Z. we achieve high machining accuracy and durability of the machine without loss of accuracy parameters.

Spindle Fixing plate

The spindle is fixed on the high quality aviation aluminum T061/6063 plate, the plate is machined by high precision CNC machining center.

MACH 3 Control system < Ethernet interface >

Mach3 is designed to control the CNC machine. The program is installed on a computer connected to the control machine. Mach3 was developed by American programmers, both for professional and amateur use, so it is the most common software for CNC machines in the world. Using Mach3, it is possible to control the following types of machines: turning, milling, routers, laser and plasma plotter, engraving.
We use Ethernet interface, high reliability, anti-interference.

XY Helical Rack Gear(Germany)

Unlike gears with straight teeth, oblique engages gradually, not immediately over the entire length. Helical gearing has no zone-pair gearing. In spur gear the load on the teeth is applied instantly. The teeth in helical gears are loaded gradually as you approach them in the area of gear meshing is always at least two pairs of teeth

TBI High-Precision Ball-screw Transmission (Taiwan)

1. high transmission efficiency.
2. high transmission accuracy, smooth movement, no creep phenomenon. The ball screw drive is basically rolling friction, and the frictional resistance is small. The frictional resistance has almost no relation with the speed of movement.
3. There is no free travel in the reverse direction. After the ball screw and nut are pre-tightened, the axial clearance can be eliminated. In this way, there is no dead zone in the reverse direction, which can improve the axial transmission accuracy and axial stiffness.

Vectric Aspire CADCAM software

Aspire is built on the same plAR2orm as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.

CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

Optional Parts

Vacuum sucking function

Comes with motor starter, vacuum gauge, filter, check valve and all necessary plumbing to connect to router. It is powerful to absorb the material.

Water Tank

When engraving the hard material such as stone and steel, water is needed for cool the cutter. The water tank can collect the used water and lead the water to the specified bucket, to prevent dirty water from flowing directly to the ground.

Dust collector

Big dust collector with 2 bags, which is powerful enough for collect the. It will make your workshop without dust.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Customer
Customer Feedback
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
1800KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
