9kw HSD ATC spindle drilling bank automatic loading panel woodworking ATC cnc router nesting machine

FOB Reference Price:Get Latest Price
$16,000.00 - $25,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Model Number:
AIS-1325-D-L
Voltage:
220V/380V
Dimension(L*W*H):
3200*1840*1900mm
Certification:
CE ISO9001
Control system:
Syntec
Spindle:
HSD 9KW ATC SPINDLE
Application:
MDF WOOD ACRYLIC
Motor:
YASKAWA SERVO MOTOR
Spindle power:
9KW
Driving system:
YASKAWA
Software:
ARTCAM
Inverter:
DELTA
Drill bank:
HSD/FAM/HITECO
Keywords:
ATC CNC ROUTER
Weight:
2000kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power(W):
9KW
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
packed in a plywood case
Port
Qingdao port
Lead Time :
Sea port
Product Description

Product Application

1325 1530 size 9kw HSD ATC spindle drilling bank automatic loading panel woodworking ATC cnc router nesting machine

This series  CNC Production Work Cell features automated loading and unloading of the sheet materials bringing high-volume cabinetry to the woodworking industry and high-volume sheet fabricationto the plastics industry.

Main Features

#12 HP HSD high frequency automatic tool changer spindle with 12 tool rotary carousel

#FAM/HSD/HITECO drill bank

#Automatical loading and unloading system
#Maintenance free brushless Japan Yaskawa AC servo motors and drives
#Automatic tool calibration pad
#6-zone vacuum table
#Pneumatic material placement stops
#Syntec industrial AC servo controller
#Hand-held pulse generator

Descriptions
                                                                     Parameters
Model
AIS-1325-D-L
AIS-1530-D-L
AIS-2030-D-L
AIS--2040D-L
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan HIWIN Linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Max. Rapid Travel Rate
60000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9kw Italy HSD (China HQD Optional)
Spindle Speed
0-24000RPM
Drill Bank
Italy FAM/HSD/HITECO
Automatic loading unloading system
For optional
Drive Motors
Japan Yaskawa servo motor and driver(Delta optional)
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
Command Language
G Code
Operating System
Taiwan SYNTEC control system(German Siemens optional)
Computer Interface
USB interface
Collet
ISO30
Inverter
Taiwan DELTA 11kw
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Sample
Detailed Images

CNC Tool Rotary Carousel

The use of an 8 Tool Rotary Carousel speeds up tool changes assuring faster cycle times increasing production throughput.

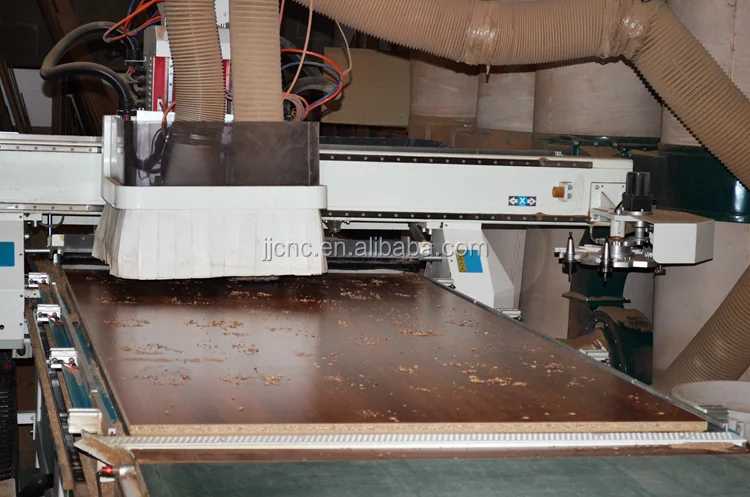

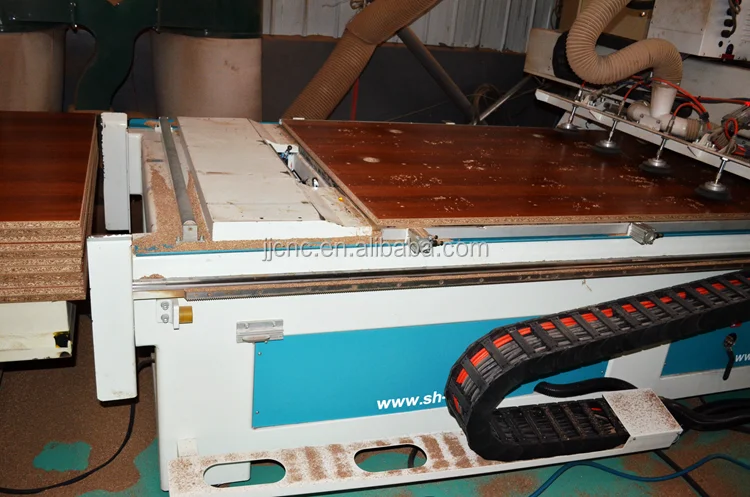

CNC Suction Cup Load System

The rear suction cup load system attached to the gantry can easily load a sheet on to the bed surface. As it loads, it automatically sweeps the deck clean of any debris assuring a clean scavenger board surface for maximum vacuum hold down as it processes each and every sheet.

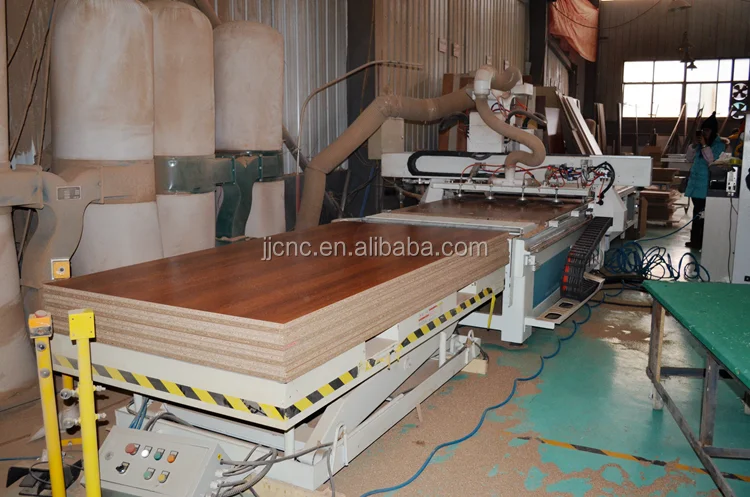

Rear Scissor Lift

The automation work cell includes a rear scissor lift which supports and raises the stack of material to the machine's vacuum bed height, which is monitored with optical eye-sensing stack material height and machine bed surface.

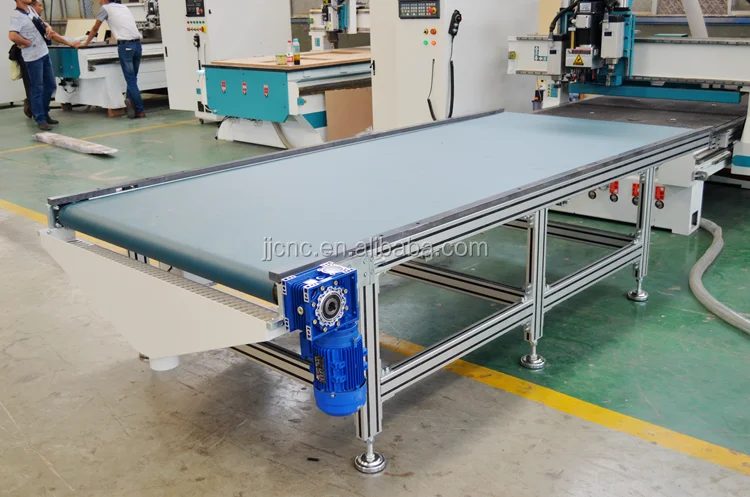

Conveyor Table

Conveyor table is located at the front end of the machine.

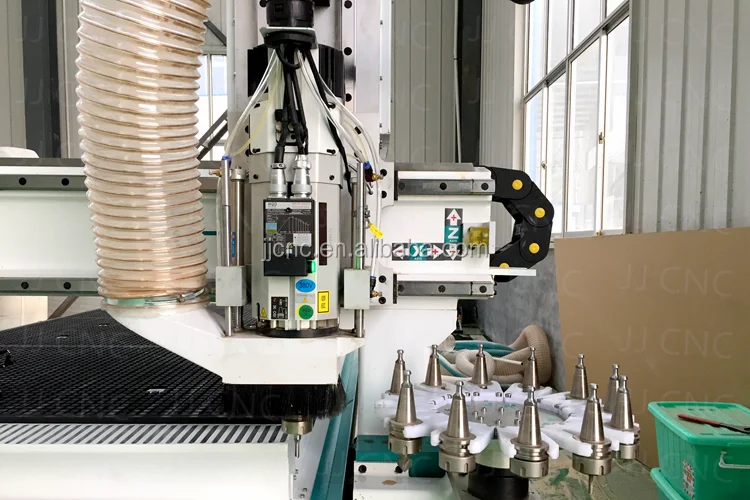

12HP HSD High Frequency Automatic Tool Changer Spindle

Brand: HSD(China HQD optional)
Origin: Italy

The ATC CNC Rouer machine comes standard with a 12HP HSD high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

Fam/HSD/Hiteco Drill Bank

5 + 4 Vertical

or Other configurations are available upon request.

Electrical parts

All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

Drive Motors

Brand: Yaskawa  Servo Motor
Origin: Japan

The ATC Series CNC Router utilizes AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance — therefore, reducing any maintenance downtime.

Drive Train Assembly

The ATC Series uses precision Helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.

CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

Pneumatic Material Alignment Stops

The ATC Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.

Control System

Brand: Syntec(Siemens and  Nc-studio optional)
Origin: Taiwan

Friendly interface, easy to learn to operate interface, accelerate the operation of learning

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
2000KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.
