Wood CNC Router machine price for Woodworking Panel Furniture Cabinet Making CNC Router 2030 Nesting Machine

FOB Reference Price:Get Latest Price
$15,000.00 - $18,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
AIS-1325-CS
Lead Time:
Quantity(Sets) 1 - 5 6 - 20 >20
Est. Time(days) 20 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples - $17,800.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Furniture
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
Alpha
Voltage:
380V/220V or Customer made
Dimension(L*W*H):
3500*1840*1900mm
Certification:
CE ISO9001
Weight (KG):
2000
Warranty:
2 Years
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Key Selling Points:
Multifunctional
Control system:
Syntec 6MD
Spindle:
9KW ATC SPINDLE
Application:
MDF WOOD ACRYLIC ALUMINUM
Motor:
YASKAWA DEGITAL SERVO MOTOR
Driving system:
YASKAWA
Software:
ARTCAM/ASPIR
Inverter:
DELTA/FULING
Spindle speed:
0-24,000RPM
Keywords:
carved wood
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood Package
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 5 6 - 20 >20
Est. Time(days) 20 30 To be negotiated
Video Description
Product Description
ATC Wood CNC Router 1325 ATC with 16-Position Rotary Tool Carousel Syntec 6MD Yaskawa Servo Bus Communication 12HP Spindle

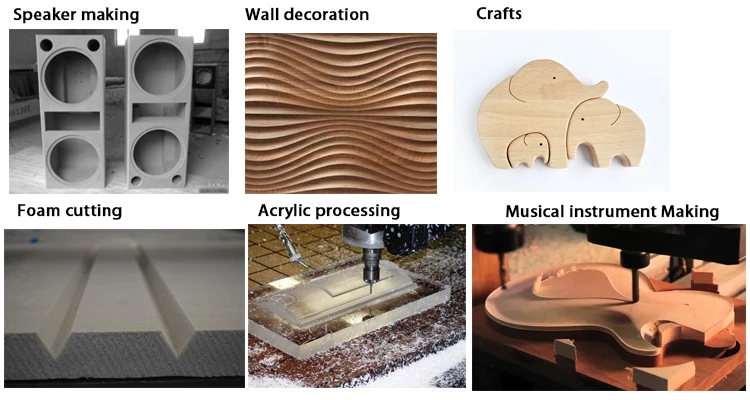

Product Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Main Features

※ 9kw high frequency automatic tool changer spindle
※ 16 tool rotary carousel
※ Syntec 6MD Bus type industrial AC servo controller
※ Maintenance free brushless Japan Yaskawa Digital AC servo motors and drives
※ Taiwan Delta inverter
※ Japan Shimpo gear reducer
※ German WMH Herion helical rack pinion
※7.5kw Fan-cooled rotary vane vacuum pump
※ Tawan PMI square rail
※ Pneumatic material placement stops
※ Hand-held pulse generator
※ Automatic tool calibration pad
※ Vacuum table
※ German Igus cable


Descriptions
                                                                     Parameters
Model
AIS-1325
AIS-1530
AIS-2030
AIS-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail 30mm width
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
60000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9kw HQD or CC Spindle (Italy HSD for Optional)
Spindle Speed
0-24000RPM
Drive Motors
Japan Yaskawa digital servo motor and driver(Delta, Leadshine optional)
Working Voltage
Custom made
Command Language
G Code
Operating System
Taiwan SYNTEC 6MD bus communication control system(Nc-studio or German Siemens optional)
Computer Interface
USB interface
Collet
ISO30
Inverter
Fuling or Taiwan DELTA 11kw
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

1325 4*8 feet wood panel mdf particleboard door cabinet furniture aluminum woodworking cutting milling carving ATC cnc router
Sample
Detailed Images

CNC Tool Rotary Carousel magazine

The AIS Series machine includes an 16-position rotary carousel that moves with the machine while the gantry travels. The use of a carousel speeds up tool changes assuring faster cycle times increasing production capability.

Gantry

The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.

9kw High Frequency Automatic Tool Changer Spindle

The Alpha ATC CNC Router machine comes standard with a 9kw high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.


Drive Motors

Brand: Yaskawa  Servo Motor
Origin: Japan

The Alpha ATC Series CNC Router utilizes digital AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance - therefore, reducing any maintenance downtime.

Syntec 6MD Bus Communication Controller &Hand-held Pulse Generator

-Better than Syntec 6MB, not easy to get broken

.-Support high resolution axis motor

-Simple distribution -Easily install

-Better performance


CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

Pneumatic Material Alignment Stops

The Alpha Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.

PMI square rail&High quality helical rack pinion


The machine adopts Taiwan PMI square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.


Automatic lubrication system

The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail, ballscrew and the rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.


Optional Parts


Becker Rotary Vane vacuum pumps

Alpha offers Becker Rotary Vane vacuum pumps which are quiet, clean, and require minimal maintenance.

4-Axis Rotary Axis

The addition of  4-axis rotary table assembly adds greater functionality to the machine's capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

HSD Aggregate Tool

Alpha CNC offers the HSD Aggregate Tool. Aggregate heads allow you to expand the capabilities of your CNC Router.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3700 (L) * 2280 (W) * 2100 (D)
Weight
2500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
