China 3 Axis 1325 Wood MDF Furniture ATC CNC Router Machine Woodworking Nesting Machine CNC Cutting Machine Router Auto Price

  • 1 - 2 Sets
    $13,450.00
  • 3 - 4 Sets
    $13,150.00
  • >=5 Sets
    $12,950.00
Model Number:
APS-1325
Lead Time:
Quantity(Sets) 1 - 1 2 - 10 >10
Est. Time(days) 15 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$13,450.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Warranty:
1Years
Place of Origin:
Shandong, China
Brand Name:
Alpha
Voltage:
AC380V/3PH/50Hz(option:220V)
Certification:
CE ISO9001
Dimension(L*W*H):
1200*2500*200mm
Power (kW):
9
Applicable Industries:
Energy & Mining, Advertising Company
Key Selling Points:
Multifunctional
Weight (KG):
2000
X,Y,Z Traveling Positioning Accuracy:
±0.02/2000mm
Table Surface:
Vacuum and T-slot
X,Y,Z Rail and Transmission:
X Y axis helical gear transmission, Z axis Taiwan TBI Ball Screw
Max. Rapid Travel Rate:
60m/min
Max. Working Speed:
40m/min
Spindle Speed:
0-24000RPM
Working Voltage:
AC380V/3PH/50Hz(option:220V)
Operating System:
Taiwan LNC
Software capabilities:
Option: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc.
Running Environment:
Temperature: 0℃~45℃ Relative Humidity: 30%~75%
After-sales Service Provided:
Online support
Packaging & Delivery
Packaging Details
The CNC Router packed in a plywood case.
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 10 >10
Est. Time(days) 15 20 To be negotiated
Video Description
Product Description

Introduction:

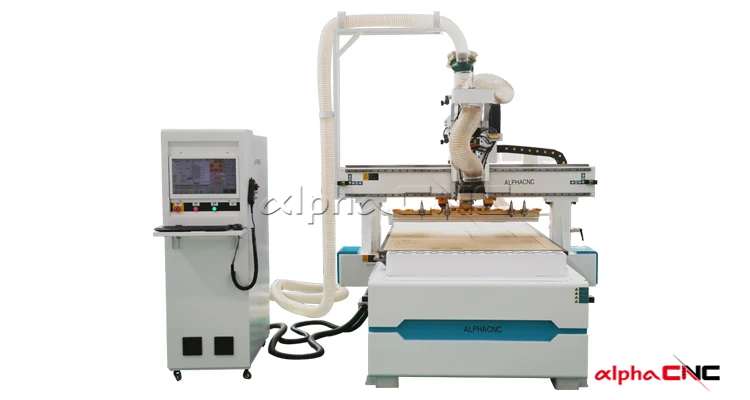

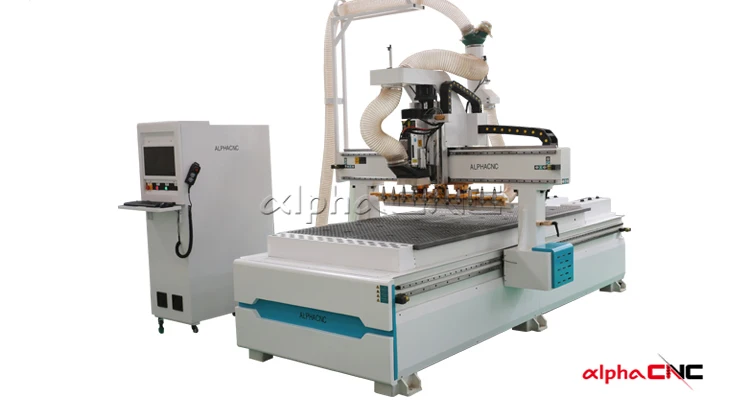

Alpha APS CNC Router is manufactured using global state-of-the-art techniques with advanced engineering, workmanship and built to last with all steel construction and superior components such as precision linear bearings and rails. Key features are a 9KW(12HP) high frequency automatic tool changer spindle with 8-position tool rack, pneumatically retractable vacuum hood and multi-zone vacuum t-slot table. The system includes Servo motors and controls with a Taiwan industrial LNC controller.

The main advantage of the machine is the tool rack moving together with the machine gantry, which will save the tool change time.

The machine can  cut about 50 pcs of wood board per 8 hour.


It can process wood, MDF, chipboard, plywood. It is widely used in the cabinet making industry. And it also can process acrylic, plastic, soft metal and many other different materials.


Parameters
Standard Specifications APS-1325

X,Y,Z Working Area
1300*2500*300mm

Spindle Power

9kw ATC air cooling spindle

X,Y,Z Traveling Positioning Accuracy

±0.02/2000mm

Table Surface

Vacuum and T-slot

X,Y,Z Rail and Transmission

X Y axis helical gear transmission, Z axis Taiwan TBI Ball Screw

Max. Rapid Travel Rate

60m/min
Max. Working Speed

40m/min

Spindle Speed

0-24000RPM

Drive Motors

Leadshine servo motor and driver

Working Voltage

AC380V/3PH/50Hz(option:220V)

Command Language

G Code
Operating System

Taiwan LNC

Interface
USB
Software capabilities

Option: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc.
Running Environment

Temperature: 0℃~45℃

Relative Humidity: 30%~75%

Detailed Images

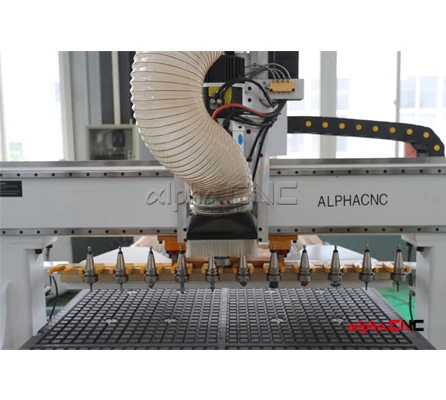

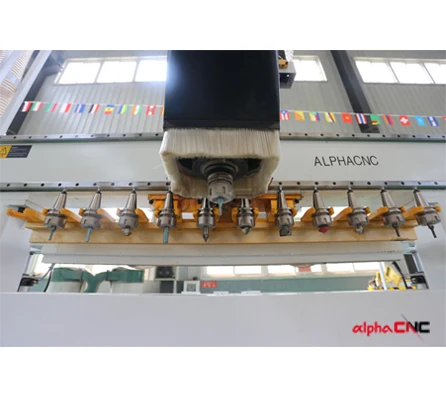

8-position Tool Rack

The Alpha APS CNC Series machine includes an 8-position tool rack. The tool rack move together with the machine gantry, which will save the tool change time. When changing the tool, the cylinder will punch the tool rack out and then change the tool. After the tool change is finished, the tool rack go back and then the spindle start to work.

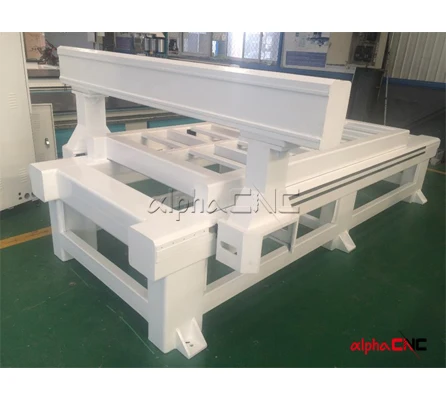

Thick Steel Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.




9KW High Frequency Automatic Tool Changer Spindle(Italy HSD spindle is for optional)

The Alpha ATC CNC Router machine comes standard with a 9kw HQD high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

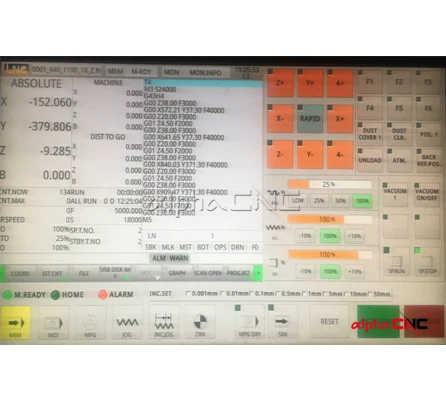

Taiwan LNC 4 axis Controller with big screen

# With Big screen # Use keyboard + mouse operation # Controllable single path 4 axis # Support all kinds of pulse type drivers # Interpolation is available for a variety of wood processing needs # Support a variety of woodworking machine standard features # Woodworking machine exclusive operation interface # Support U disk

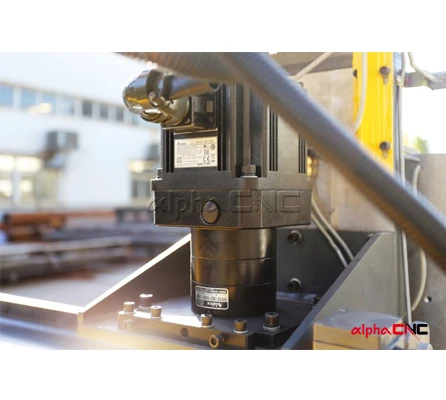

Leadshine Servo Drive Motors

Composed of: servo drives and the servos move in all axes. With this motor, the machine can realize high-precision machining at high speed.

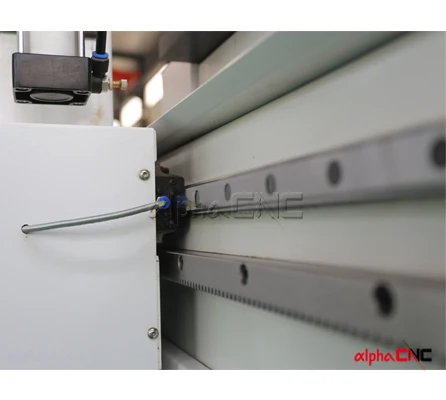

Hiwin/TBI Square Rail on XYZ Axis

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality helical rack pinion, makes it high precision.

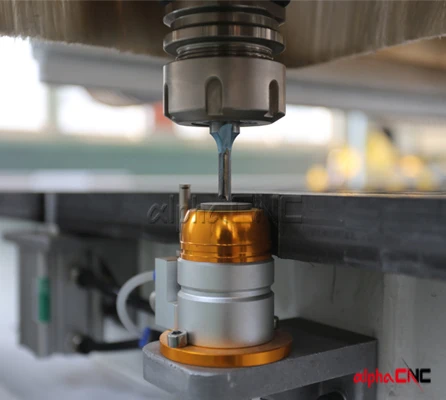

CNC Tool Calibration

The Tool holder support mounting plate is milled by the CNC machining center. To make sure the tool holder is high precision.

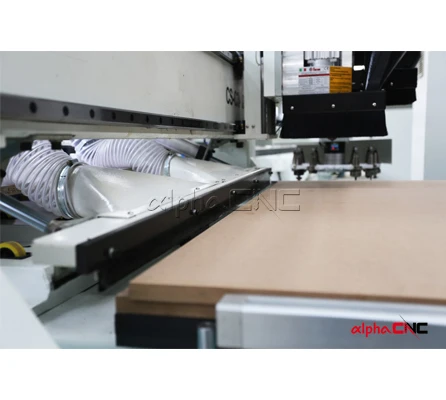

Double Vacuum brush
The machine comes with a vacuum brush at the back of the machine beam. The function of the vacuum brush is to absorbs the small wood chips that have just been cut. Prevents the scum from affecting the vacuum sucking function. It will make the machine vacuum suck the material more firmly.

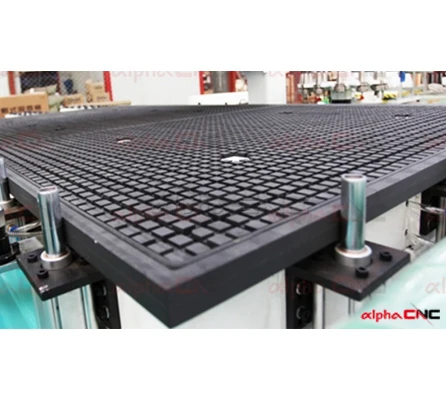

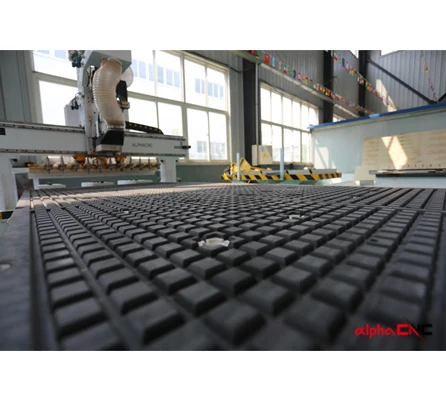

Hybrid Vacuum and T-slot table

The APS CNC Router has a 1 inch thick phenolic vacuum table surface mounted onto the steel base frame, keeping a rigid and consistent platform for your sheets and parts to be supported. The vacuum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing, (which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.

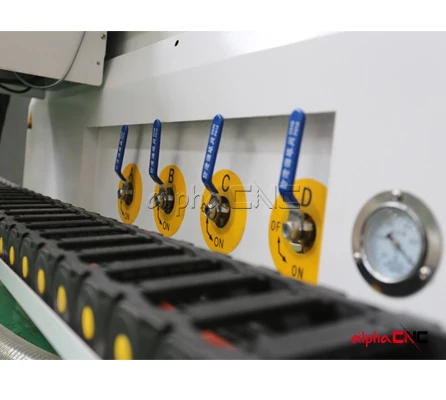

Vacuum function switch

The APS Series Machine also includes a heavy-duty aluminum T-Slot profile in multiple locations across the table surface. This T-Slot accepts Alpha’s square M6 T-nuts.






7.5kw Vacuum Pumps

7.5kw dry Rotary Vane Vacuum Pump Comes standard with motor starter, vacuum gauge, primary and secondary filter, check valve and all necessary plumbing to connect to router.

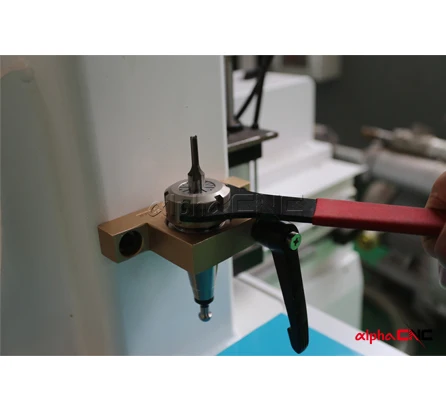

NEW — CNC Machine Tool Holder Clamp
The Alpha AIS CNC Machine comes equipped with a tool holder clamp fixture, providing a much easier way of inserting and tightening the CNC router bits into your tool holder. This method is safer and easier than using the common procedure of tightening the collet nut with two wrenches while the tool holder is still in the spindle.



Pneumatic Material Alignment Stops

The Alpha AIS ATC Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin. Figure on the right illustrates the CNC Router material alignment pins pop open and close for easy sheet alignment

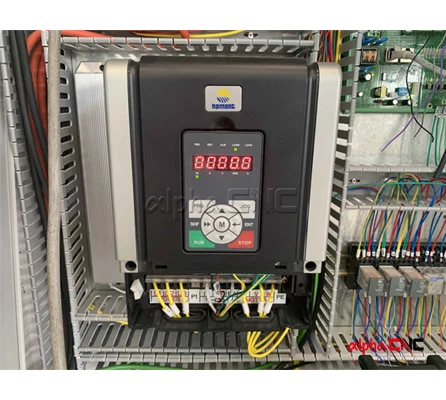

Hpmont inverter
High performance, small size High-performance SVC control with high precision Small size, about 70% of general machinery, saving installation space Flexible digital input signal Programmable bipolar signal input, compatible with AC and DC signal inputs. - DC input voltage range 15-56VDC, compatible with 24, 36, 48VDC - AC input voltage range 12-54VAC, compatible with 36, 48VAC

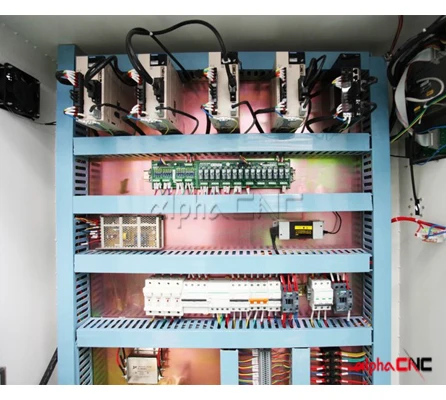

Independent big Control cabinet

All the electrical components are housed and wired in a independent electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

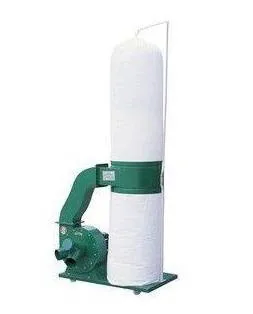

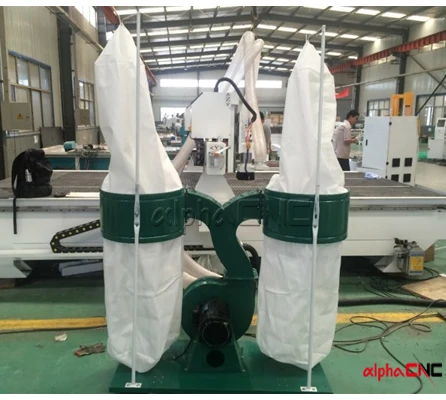

Dust collector

The Alpha ATC CNC Machine comes with a 3.5kw dust collector, which is powerful enough for collect the. It will make your workshop without dust.
