APS-1325-CC CNC Router Machine for Wood Aluminum Metal

  • >=1 Sets
Model Number:
Lead Time:
Quantity(Sets) 1 - 5 6 - 20 >20
Est. Time(days) 20 30 Negotiable
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)


Graphic customization (Min. Order: 1 Sets) Less
$7,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Quick Details
CNC or Not:
2 Years
Place of Origin:
Shandong, China
Brand Name:
380V/220V or Customer made
CE ISO9001
Power (kW):
Applicable Industries:
Construction works , Advertising Company, Furniture
Key Selling Points:
Weight (KG):
Control system:
DSP NK105 Or Taiwan LNC or Taiwan Syntec
Spindle power:
9kw ATC air cooling spindle
Driving system:
Delta 11kw
Spindle speed:
ATC CNC Router Machine
After-sales Service Provided:
Field installation, commissioning and training
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood Package
Picture Example:
Lead Time :
Quantity(Sets) 1 - 5 6 - 20 >20
Est. Time(days) 20 30 To be negotiated
Video Description
Product Description
China the Best 4*8 ft 5*10 ft ATC CNC Router Machine for Wood Aluminum Metal Plastic MDF High Speed Cutting Milling Engraving

Product Application

* Metal processing: Aluminum, Copper, and many other soft metal cutting, milling, engraving.

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF,  organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Main Features

# Structure: Heavy duty
# CE Standard
# Spindle: 9kw HQD ATC air cooling spindle
# 8-position tool rack
# Tool shanks: 8pcs
# Driving motor: Delta servo motor 850w
# Control system: DSP NK105(Taiwan LNC or Syntec for option)
# Inverter: Delta 11kw
# Table: Hybrid Vaccum and T-slot table
# 7.5kw vacuum pump
# Dust collector
# XY axis German Helical rack and pinion
# Z axis TBI ballscrew
# XYZ axis Taiwan Hiwin square rail
# Tool sensor
# Software Vectric Aspire

Custom made
Working area
Custom made
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail 30mm width
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
Max. Working Speed
Spindle Power
9kw HQD Spindle (Italy HSD for Optional)
Spindle Speed
Drive Motors
Delta servo motor and driver(Yaskawa, Leadshine optional)
Working Voltage
Custom made
Command Language
G Code
Operating System
 NK105 DSP control system(Taiwan Syntec or LNC optional)
Computer Interface
USB interface
Taiwan DELTA 11kw
Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Detailed Images

Thick Steel Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

Wood Carving Router Machine
Wood Carving Router Machine

9KW Automatic Tool Changer Spindle(Italy HSD spindle is for optional)

The Alpha ATC CNC Router machine comes standard with a 9kw HQD high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

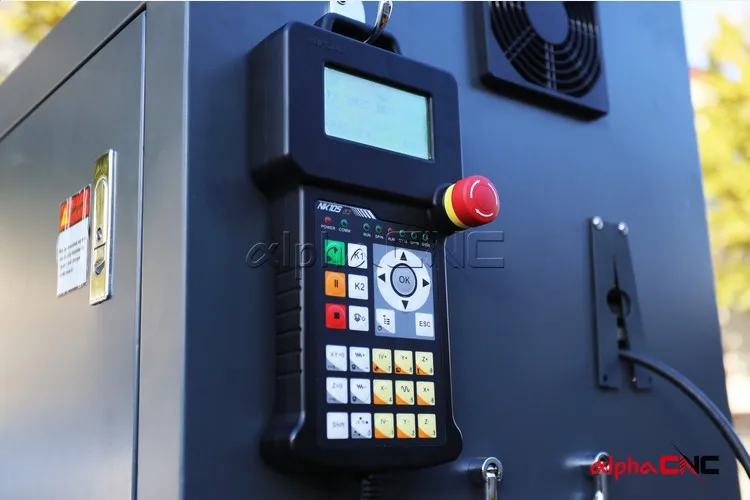

Easy to use Hand-held DSP NK105 G3 Controller

The DSP hand controller is easy to operate, does not require additional connection to the computer, which makes the machine completely autonomous.

Wood Carving Router Machine
Wood Carving Router Machine

Taiwan Delta Servo Drive Motors 850w

Composed of: servo drives and the servos move in all axes.
With this motor, the machine can realize high-precision machining at high speed.

Taiwan Delta Inverter

It is intended for control of drives where high accuracy of speed regulation and a wide range of control are required. They provide achievement of the maximum moment on the shaft of the spindle and the possibility of direct control of this moment.

Wood Carving Router Machine
Wood Carving Router Machine

Mechanical Limit

Limit switch also known as the travel limit switch, it is used to control the travel and limit protection of the machine. The machine comes with the mechanical limit, which is better than the photoelectric limit. It has longer service and not easy to get broken.

Japan Shimpo gear reducer

The Alpha APS Series CNC Router utilizes Japan Shimpo gear reducer. These gear reducers are with high precision, and it can increase torque, therefore make the motor more powerful.

Wood Carving Router Machine
Wood Carving Router Machine

XY Axis High quality helical rack pinion

The Alpha APS Series uses precision Helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.

Hiwin/TBI Square Rail on XYZ Axis

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality helical rack pinion, makes it high precision..

Wood Carving Router Machine
Wood Carving Router Machine

 8-position Tool Rack

The Alpha CNC Series machine includes an 8-position tool rack in the rear of the machine. The position of this rack allows for easy loading and unloading of material from either side of the machine.

Tool drawer

The drawer is in front of the machine, which is used to hold tools such as wrenches, tool holders, splints, router bits, etc. Workers are more convenient to use the tools.

Wood Carving Router Machine

Optional Parts

Wood Carving Router Machine
Wood Carving Router Machine
Wood Carving Router Machine

Becker Rotary Vane vacuum pumps

Alpha offers Becker Rotary Vane vacuum pumps which are quiet, clean, and require minimal maintenance.

4-Axis Rotary Axis

The addition of  4-axis rotary table assembly adds greater functionality to the machine's capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

HSD Aggregate Tool

Aggregate heads allow you to expand the capabilities of your CNC Router.

Our Certificates
Packing & Delivery
Wood Carving Router Machine
3700 (L) * 2280 (W) * 2100 (D)

Packaging Details
The normal package is plywood box.
Our Company
 Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.

Agent and distributor wanted all over the world!

Wood Carving Router Machine


Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.

Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!

Q6. What's your date of delivery?
For standard machine, about 15 working days;  For customized machine, about 20 working day.

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
