ABR Series CNC Router Machine

FOB Reference Price:Get Latest Price
$4,200.00 - $7,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
Alpha
Model Number:
ARS-1530-300
Voltage:
220V/380V
Dimension(L*W*H):
1300*2500*mm
Certification:
CE ISO9001
Control system:
DSP/Mach 3
Spindle:
3.5/4.5/6kw spindle
Application:
WOOD MDF ACRYLIC
Motor:
Stepper motor/Servo motor/Hybrid setvo motor
Driving system:
Leadshine/Yako
Software:
ARTCAM/ASPIR
Inverter:
DELTA/FULING
Spindle speed:
0-24000RPM
Keywords:
4 axis cnc router
Rotary axis:
0-300mm
Weight:
1800kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power(W):
3-7kw
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
CNC Router is packed in a plywood case
Port
Qingdao
Lead Time :
10 working days
Product Description

ABR Series CNC Router Machine

Introduction
The Alpha ABR CNC Router is the perfect solution for applications requiring cylindrical 3d sculpture. Whether you need to route an intricate 3D carving on a cylindrical surface or index a part by rotating it a set number of degrees, the Alpha 4th axis will prove to be a valuable tool.
The machine can process: acrylic, wood, plastic, epoxy resin, ABS, PP, PE, PVC, MDF, organic glass, plastic.
The machine can be used in furniture industry, sign industry, decoration industry, craft gift industry, , and many other industries.

Main Features

High frequency 3.5kw spindle
※Rotary axis diameter 0-150mm,0-200mm, 0-250mm,0-300mm for option
※T-slot table
※Mach 3 controller
※Brushless micro-stepper motors
※XYZ axis Hiwin Square rail
※Z axis High precision Ballscrew

Descriptions
                                                                     Parameters
Rotary axis
0-100mm
0-150mm
0-200mm
0-250mm
0-300mm
Machine body
Thick Welded Square Steel Pipe
Movement
X/Y Helical rack and pinion
Guide linear
Z  High precision ball screw
Cut thickness of material
Hiwin square rail
Max.Speed
Depends
Working speed
40000mm/min
Machining pass
0-30000mm/min
Mechanical precision
Depends
Software
0.025mm
Power source
Vectric Aspire, Type3, Artcut, Artcam, Alphacam software
Driver type
AC 220V/50-60Hz or Custom made
Spindle power
Stepper motor(Servo motor for option)
Spindle speed
3.5KW variable speed(2.2kw 4.5kw, 6kw, 7.5kw for option)
Control system
0-18,000rpm/0-24,000rpm
Command
Mach3/DSP/Nc studio

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Sample
Detailed Images

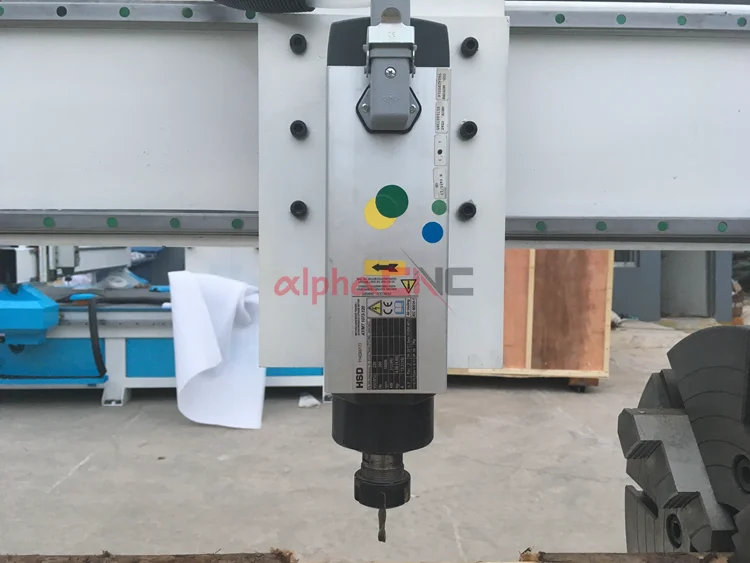

3.5kw High Frequency Spindle

The ABR CNC Router machine comes standard with 3.2kw high frequency spindle Fully programmable speeds from 6000 to 18000 RPM, and comes complete with pneumatically retractable vacuum hood.

Rotary axis

Comes complete with a 3-jaw chuck and tail stock. Linear guide track for easy tail stock movement and center alignment
The addition of Alpha's 4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.


Mach 3 controller(Ethernet)

Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code.


Drive Motors

The ABR series CNC Router utilizes brushless micro-stepper motors. These motors require no regular maintenance, therefore reducing any maintenance downtime.

XYZ Axis Hiwin Square Rail& XY Axis helical rack and pinion

The machine adopts Taiwan Hiwin square rail, which is twice durable. And the use of high quality helical rack and pinion, makes the machine with faster moving speed and high precision.


Z Axis Hiwin Square Rail& High precision TBI ball screw
The ball screw is famous brand TBI, it is high precision and durable.


CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.


The Electronics of the CNC Router

All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet.


Vectric Aspire Software

Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.


Accessory box

The machine comes with a complete set of accessories, including wrench, brush, tool holder, data cable, water pump, manual tools, software, flush disk, to make sure you can use the machine directly once you get the machine.


Optional Parts

DSP hand controller

It is a off line control system, and very easy to operate.




Dust Collector

3kw double bags dust collector, which is powerful enough for collect the. It will make your workshop without dust.

Oil mist Coolant System

The  Oil mist Coolant System is ideal for coolant tools for cutting metal. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

Customer
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
1500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
