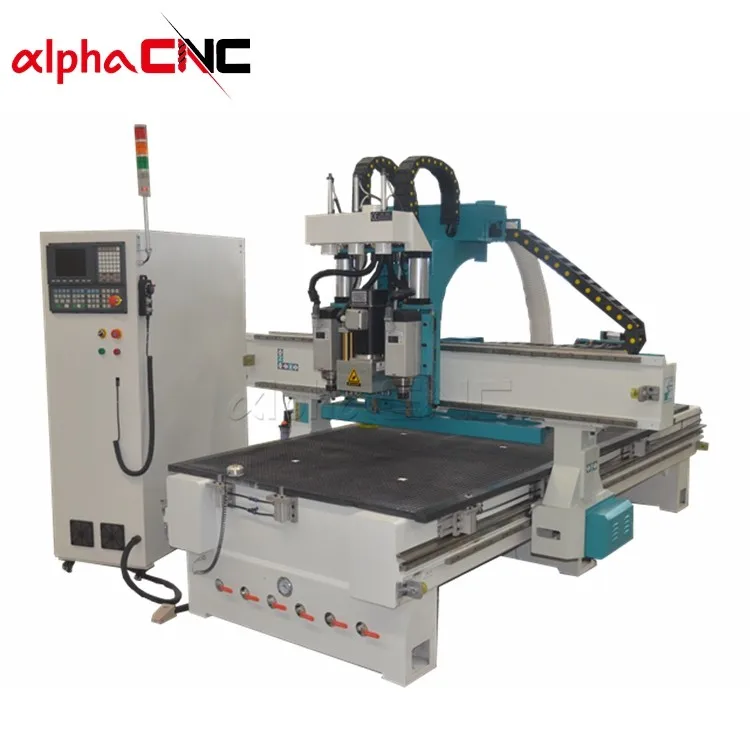

Professional Kitchen Cabinet Production With Fam Drilling Bank Woodworking Cnc Router
The Alpha CNC Router is the perfect solution for applications requiring board process and this machine is specially designed for curve surface cabinet, doors and indoor decoration, it is qualified for mass- producing of furniture with the Vacuum holding way and dust collector. The machine can process: acrylic, wood, plastic, epoxy resin, ABS, PP, PE, PVC, MDF, organic glass, plastic. The machine can be used in furniture industry, foam mold industry, sign industry, photo industry, decoration industry, craft gift industry, and many other industries.
Main Features-professional kitchen cabinet production
*SYNTEC control system from Taiwan, with high performance and competitive price. Professional famous brand in 4 axis machine line.Rotary axis diameter 0-100mm, 0-150mm，0-200mmf or option *Original 850W YASKAWA Servo motors & drivers from Japan, ensure the machine’s stronger strength and high accuracy. *Vacuum table
*Italy FAM 9+4 vertical *HSD Air cooling spindle from Italy, with strong cutting ability, low noise, to ensure the machine working for long time. *Rotating head from Japan, it can make sure there are no gaps when spindle rotating. *XYZ axis Hiwin Square rail *Z axis High precision TBI Ballscrew
X,Y,Z Traveling Positioning Accuracy
X,Y,Z Re-positioning Accuracy
Max rapid travel rate
Max. Working Speed
X, Y Resolution
Running Environment Temperature
30% - 75%
Please kindly note the above configuration is standard configuration.
Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.
6kw High Frequency Spindle
SERIES CNC Router machine comes standard with 6 kw high frequency spindle Fully programmable speeds from 6000 to 18000 RPM, and comes complete with pneumatically retractable vacuum hood.
FAM driling bank
5 + 4 Vertical or Other configurations are available upon request.

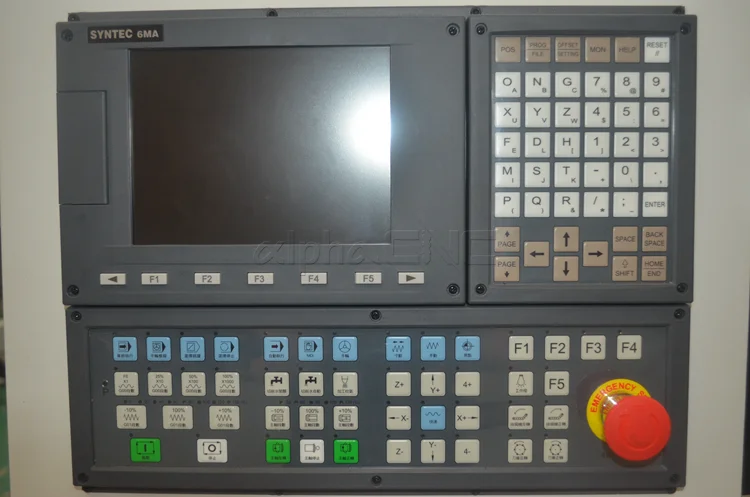

CONTROL SYSTEM «SYNTEC» (TAIWAN)
One of the most accessible and reliable control systems. It is still installed even on metalworking machines of some series. Full support for 3D processing, the function "LookAhead", the ability to edit and create programs directly from the machine, a simple and intuitive graphical interface of the system provide high performance and quality of the product, a short setup time and ease of management. The presence of interfaces USB, Ethernet greatly increases the convenience of connecting various external devices, and also allows you to connect the machine to the local network of the enterprise.
SERVOMOTORS "YASKAWA" (JAPAN)
Installed on each node to move in the X, Y and Z, provide a high-precision positioning of spindle (to 0.001 mm) in accordance with a predetermined program at high travel speed to 45 m/min, these motors are well proven high degree of reliability and stability even in harsh conditions. This type of servo motors used in high speed machines of the heavy series, and 5 axis machines.

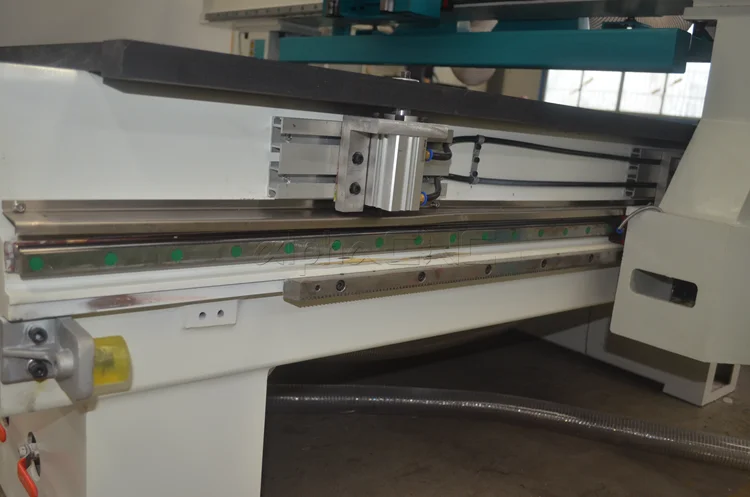

The machine adopts Taiwan Hiwin square rail, which is twice durable. And the use of high quality helical rack and pinion, makes the machine with faster moving speed and high precision.
Z Axis Hiwin Square Rail& High precision TBI ball screw
The ball screw is famous brand TBI, it is high precision and durable .
The Electronics of the CNC Router
All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet.
Vectric Aspire Software
Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.
The machine comes with a complete set of accessories, including wrench, brush, tool holder, data cable, water pump, manual tools, software, flush disk, to make sure you can use the machine directly once you get the machine.
DSP hand controller
It is a off line control system, and very easy to operate.
3kw double bags dust collector, which is powerful enough for collect the. It will make your workshop without dust.
Oil mist Coolant System
The Oil mist Coolant System is ideal for coolant tools for cutting metal. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
3200 (L) * 2300 (W) * 1900 (D)
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.
Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on. Anyone is interested in our product, welcome to be the partner of Alpha.
