Linear Type ATC Automatic Tool Change CNC Router

FOB Reference Price:Get Latest Price
$8,000.00 - $23,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
APS-1325
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Advertising Company, Furniture Industry
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Voltage:
AC380V/3PH/50Hz(option:220V) Customer made
Dimension(L*W*H):
1300*2500*20mm
Certification:
CE ISO9001
Warranty:
2 Years
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Control system:
Syntec
Spindle:
9KW ATC SPINDLE
Application:
MDF WOOD ACRYLIC ALUMINUM
Motor:
Delta SERVO MOTOR
Spindle power:
9KW
Software:
ARTCAM/ASPIR
Inverter:
DELTA
Spindle speed:
0-24000RPM
Keywords:
ATC CNC ROUTER
Power(W):
9KW
Weight:
1800kg
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
ATC CNC Router packed in the Plywood Case
Port
Qingdao
Product Description

Introduction:

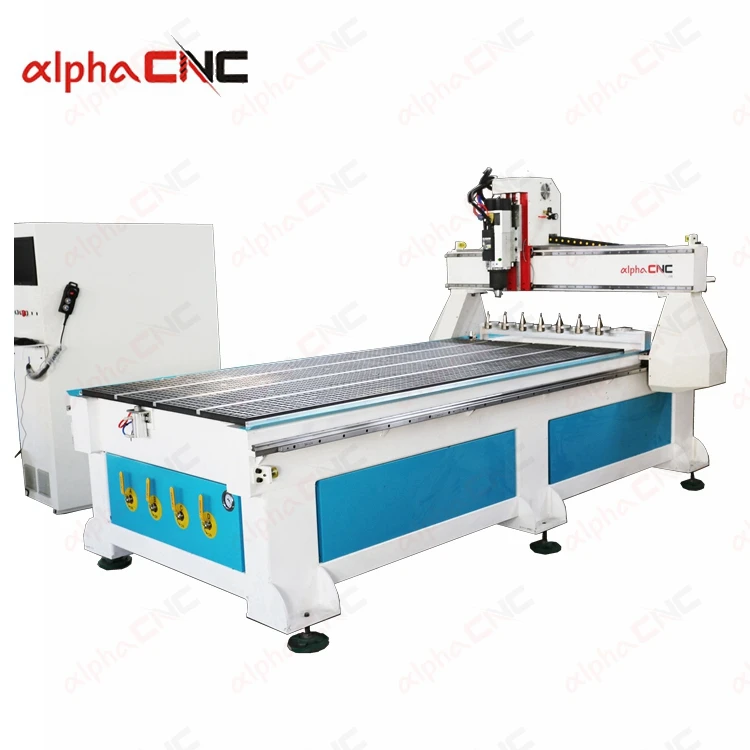

Alpha APS ATC CNC Router is manufactured using global state-of-the-art techniques with advanced engineering, workmanship and built to last with all steel construction and superior components such as precision linear bearings and rails. Key features are a 9KW high frequency automatic tool changer spindle with 8-position tool rack, pneumatically retractable vacuum hood and multi-zone vacuum t-slot table. The system includes Delta servo motors and controls with a Taiwan Syntec controller.

It can process wood, MDF, particleboard, plywood, acrylic, plastic, soft metal and many other different materials.

Main Features

※ 9kw(12HP) high frequency automatic tool changer spindle
※ Syntec controller
※ Delta AC servo motors and drives
※ Automatic tool calibration
※ 6-zone vacuum T-slot table

※ Fan-cooled rotary vane vacuum pump
※ Hiwin 25mm square rail
※ Pneumatic material placement stops(for option)
※ Hand-held pulse generator
※ Japan Shimpo gear reducer(for option)

Descriptions
                                                                     Parameters
Model
APS-1325
APS-1530
APS-2030
APS-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.01/2000mm
Table Surface
Vacuum and T-slot
Frame
Thicken steel Square Tube Heavy structure
X, Y Structure
XY axis German Helical rack and pinion
Z Structure
Z axis TBI ballscrew
Max. Rapid Travel Rate
60m/min
Max. Working Speed
40m/min
Spindle Power
9kw  ATC Spindle
Spindle Speed
0-24000RPM
Drive Motors
Delta
Working Voltage
Custom made
Command Language
G Code
Operating System
Syntec 6MA
Computer Interface
USB interface
Collet
ISO30
Inverter
Taiwan DELTA 11kw
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

1325 4*8 feet wood panel mdf particleboard door cabinet furniture aluminum woodworking cutting milling carving ATC cnc router
Sample
Detailed Images

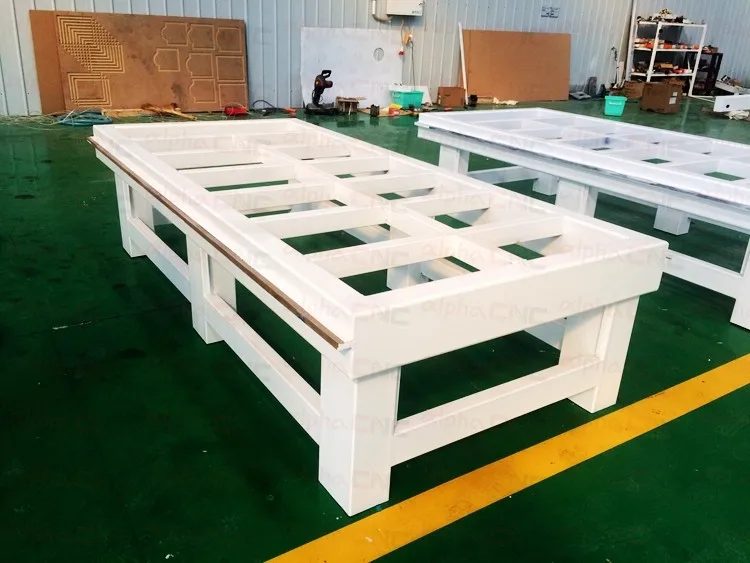

Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

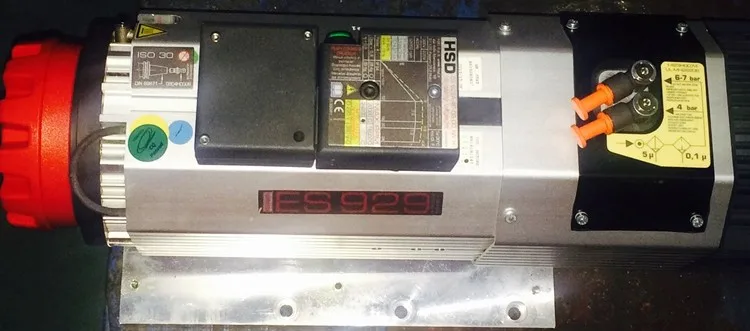

9KW High Frequency Automatic Tool Changer Spindle(Italy HSD spindle for option)

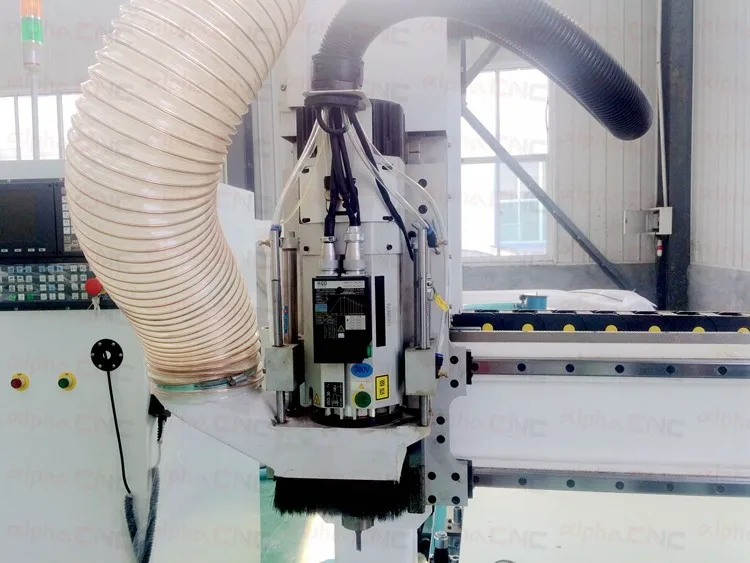

The Alpha ATC CNC Router machine comes standard with a 9kw HQD high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

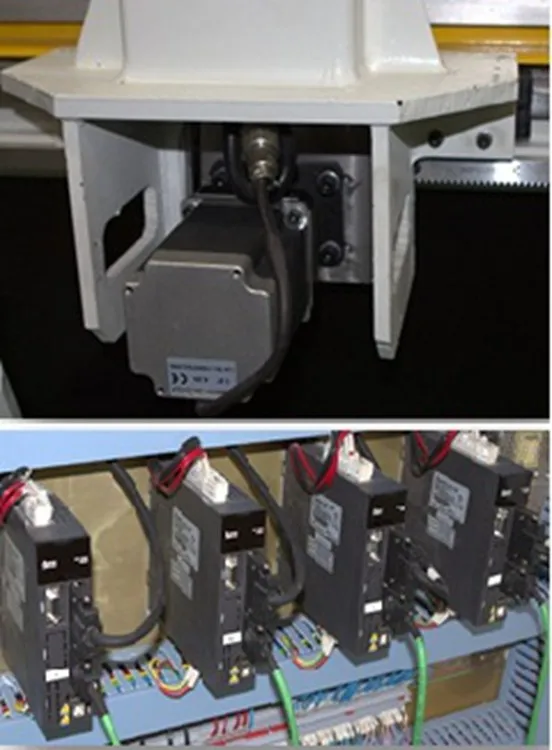

Drive Motors

Composed of: servo drives and the servos move in all axes.
With this motor, the machine can realize high-precision machining at high speed.
Delta Electronics was founded in 1971. A world leader in the manufacturing of servos and control components. Great success the company achieved in industrial automation.

Drive Motors

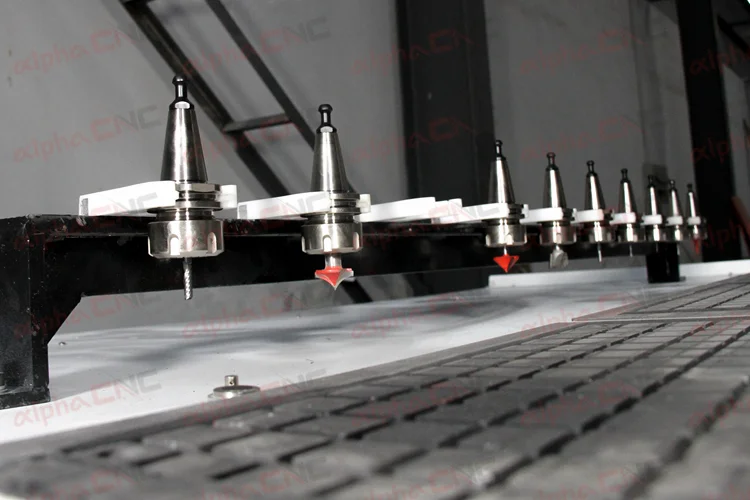

The machine includes an 8-position tool rack in the rear of the machine. The position of this rack allows for easy loading and unloading of material from either side of the machine.

CNC Tool Calibration

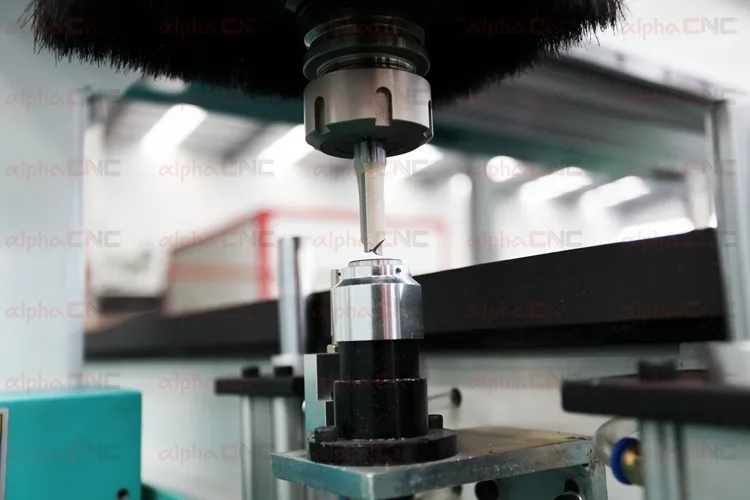

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

Hybrid Vacuum and T-slot table

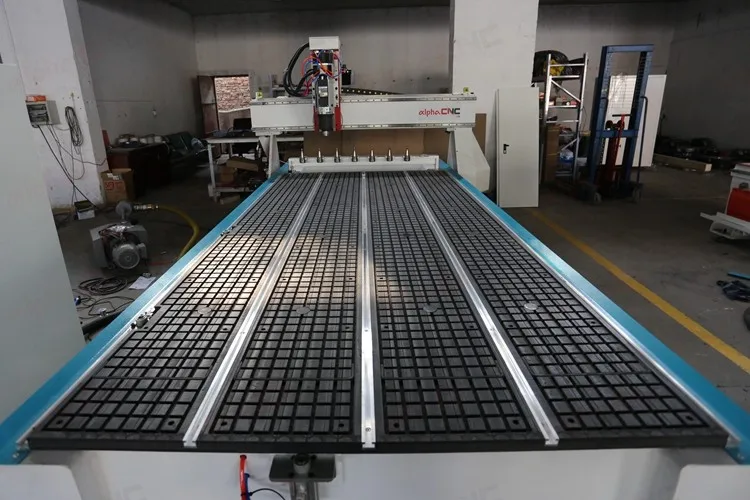

The APS CNC Router has a 1 inch thick phenolic vacuum table surface mounted onto the steel base frame, keeping a rigid and consistent platform for your sheets and parts to be supported.
The vacuum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing, (which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.
The APS Series Machine also includes a heavy-duty aluminum T-Slot profile in multiple locations across the table surface. This T-Slot accepts Alpha’s square M6 T-nuts.

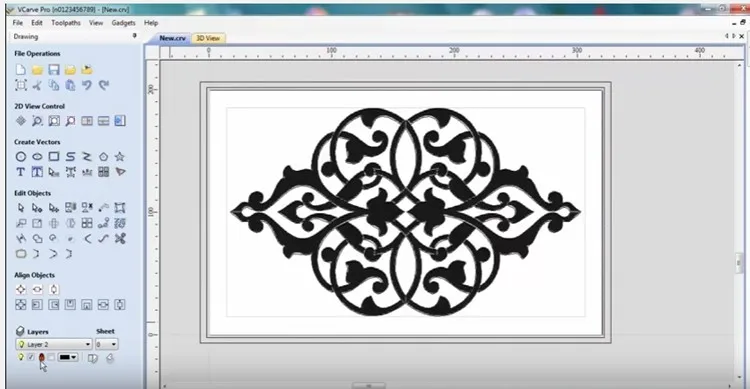

Vectric Aspire Software

Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.

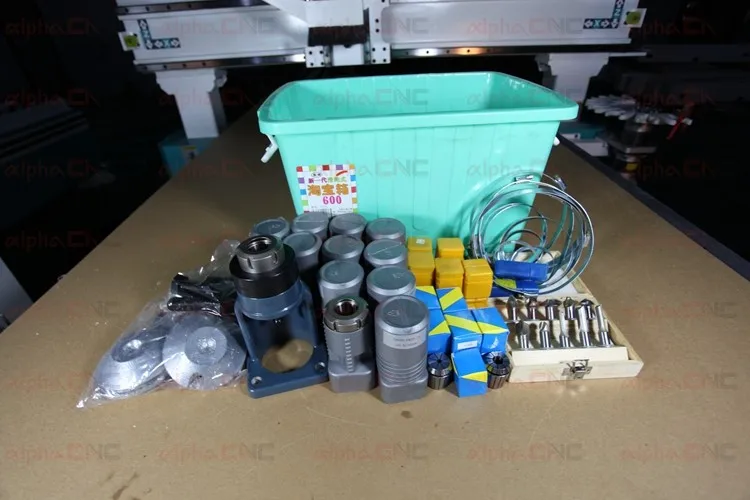

Accessory box

8 pcs of tool holders, a box of tools, cable, leveling bases, Lock holder, software in U-disk.

Pneumatic Material Alignment Stops

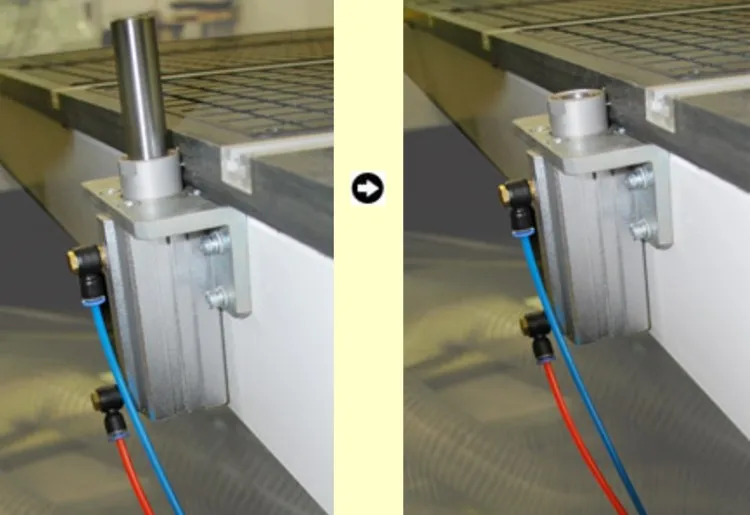

The APS CNC Router comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.

Optional Parts

Italy HSD 9KW ATC air cooling spindle

Alpha CNC offers Italy HSD 9KW ATC air cooling spindle, which is powerful, and more durable.

4-Axis Rotary Table

Alpha’s 4-Axis rotary table assembly comes complete with a 3-jaw chuck, tail stock, and linear guide track for easy tail stock movement and center alignment. The addition of Alpha's 4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

HSD Aggregate Tool

Alpha offers the HSD aggregate tool. Aggregate heads allow you to expand the capabilities of your CNC Router. Watch video to see a brief demonstration of this tool.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Customer
Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
2500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
