German Siemens controller Siemens servo motor 10 tools top quality ATC cnc router for wood aluminum mdf plastic cutting milling

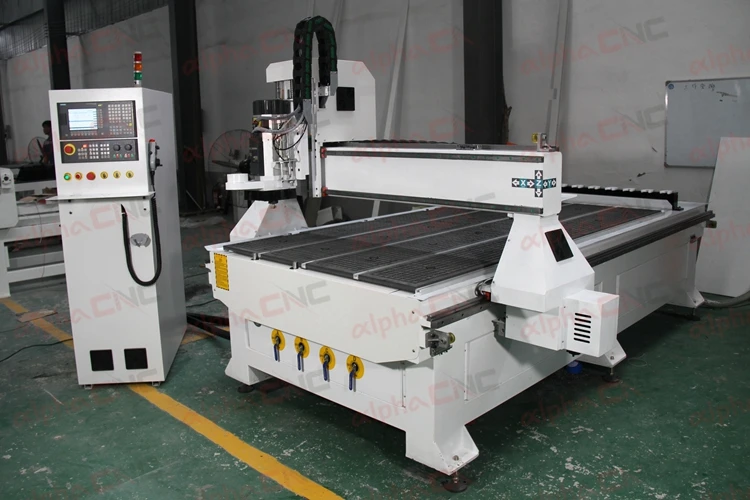

Alpha CNC Systems ATC CNC Router is manufactured using global state-ofthe-art techniques with advanced engineering, workmanship and built to last with all steel construction and superior components such as precision linear bearings and rails. Key features are a 12 HP Italy HSD high frequency automatic tool changer spindle with 10-position tool rack, pneumatically retractable vacuum hood and multi-zone vacuum t-slot table. The system includes German Siemens servo motors and controls with a German Siemens controller.
It can process wood, MDF, particleboard, plywood, acrylic, plastic, soft metal and many other different materials.
※ Italy HSD 9kw(12HP) high frequency automatic tool changer spindle ※ German Siemens controller ※ Maintenance free 1kw German Siemens AC servo motors and drives ※ Automatic tool calibration pa ※ 6-zone vacuum T-slot table※ Fan-cooled rotary vane vacuum pump ※ PMI 25mm square rail ※ Pneumatic material placement stops ※ Hand-held pulse generator ※ Japan Shimpo gear reducer(for option)

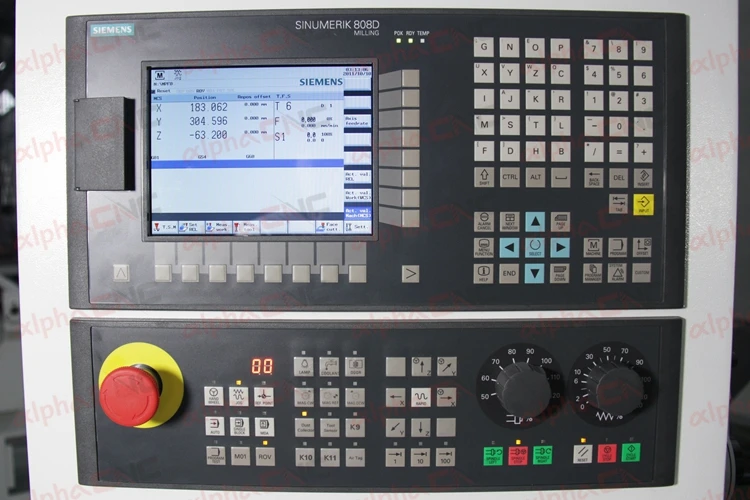

Thanks to its panel-based CNC design requiring only few interfaces and an operator panel with degree of protection IP65, the SINUMERIK 808D / 808D ADVANCED is perfectly prepared for the use in harsh environments. With its small dimensions, it can be used on compact machines. At the same time, the SINUMERIK 808D / 808D ADVANCED allows convenient operation with short-stroke keys and the well-known SINUMERIK softkeys.

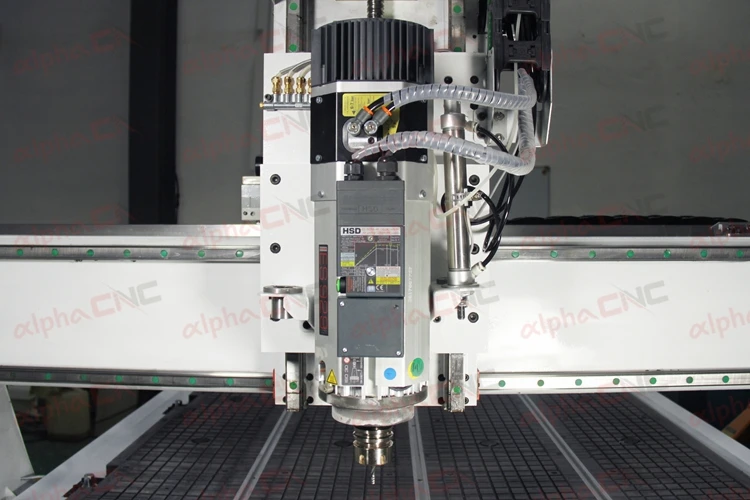

The Alpha ATC CNC Router machine comes standard with a 12 HP HSD high frequency automatic tool changer. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders, has fully programmable speeds from 6000 to 24000 RPM, and comes complete with a pneumatically retractable vacuum hood.
1KW German Siemens AC servo motors and drives
The Alpha ATC CNC Router features 1 kW German Siemens AC servo motors and drives that are directly coupled to the drive pinion for the X and Y axes. This ensures high powered, smooth precision motion.
The machine includes a 10-position tool rack in the rear of the machine. The position of this rack allows for easy loading and unloading of material from either side of the machine.
PMI/Hiwin square rail
The machine adopts Taiwan PMI 25mm width square rail, which is more than twice durable.
CNC Tool Calibration
Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.
The vacuum plenum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing, (which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.
High Powered CNC Router Electronics
All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.
Vectric Aspire Software
Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.
Becker Rotary Vane vacuum pumps
Alpha offers Becker Rotary Vane vacuum pumps which are quiet, clean, and require minimal maintenance.
4-Axis Rotary Axis
The addition of 4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.
HSD Aggregate Tool
Alpha CNC offers the HSD Aggregate Tool. Aggregate heads allow you to expand the capabilities of your CNC Router.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
3200 (L) * 2300 (W) * 1900 (D)
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.
Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on. Anyone is interested in our product, welcome to be the partner of Alpha.
