4 Axis Series CNC Router Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Model Number:
ABS-1325-4
Voltage:
220V/380V
Dimension(L*W*H):
1300*2500*mm
Certification:
CE ISO9001
Control system:
SYNTEC Taiwan
Spindle:
3.5/4.5/6kw spindle
Application:
WOOD MDF ACRYLIC
Motor:
Stepper motor/Servo motor/Hybrid setvo motor
Driving system:
Leadshine/Yako
Software:
ARTCAM/ASPIR
Inverter:
DELTA/FULING
Spindle speed:
0-24000RPM
Keywords:
4 axis cnc router
Rotary axis:
0-300mm
Weight:
1800kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power(W):
3-7kw
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
CNC Router is packed in a plywood case
Port
Qingdao
Lead Time :
10 working days
Product Description

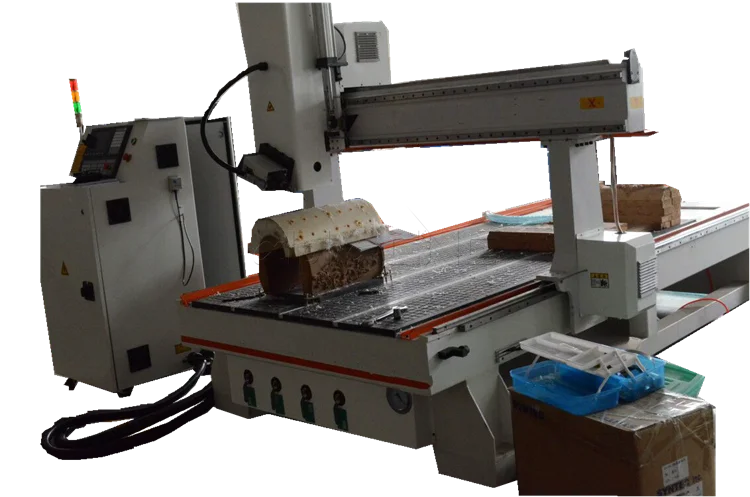

4 Axis SERIES CNC Router Machine

Introduction
The Alpha 4 AXIS SERIES CNC Router is the perfect solution for applications requiring board process and this machine is specially designed for curve surface cabinet, doors and indoor decoration. It can also work for some mold process like foam mold.
The machine can process: acrylic, wood, plastic, epoxy resin, ABS, PP, PE, PVC, MDF, organic glass, plastic.
The machine can be used in furniture industry, foam mold industry, sign industry, photo industry, decoration industry, craft gift industry, and many other industries.

Main Features

*SYNTEC control system from Taiwan, with high performance and competitive price. Professional famous brand in 4 axis machine line.Rotary axis diameter 0-100mm, 0-150mm,0-200mmf or option
*Original 850W YASKAWA Servo motors & drivers from Japan, ensure the machine’s stronger strength and high accuracy.
*Vacuum table
*HSD Air cooling spindle from Italy, with strong cutting ability, low noise, to ensure the machine working for long time.
*Rotating head from Japan, it can make sure there are no gaps when spindle rotating.
*XYZ axis Hiwin Square rail
*Z axis High precision TBI Ballscrew
Descriptions
                                                                     Parameters
1325
1530
2030
2040
custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
custom made
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
X,Y,Z Re-positioning Accuracy
±0.03/300mm
Max rapid travel rate
80000mm/min
Max. Working Speed
45000mm/min
Command language
G code
Flash Memory
512 M
Collet
ER32
X, Y Resolution
<0.03mm
Running Environment Temperature
0-45 Centigrade
Relative Humidity
30% - 75%

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Sample
Detailed Images

4.5kw High Frequency Spindle

The 4 axis SERIES CNC Router machine comes standard with 4.5kw high frequency spindle Fully programmable speeds from 6000 to 18000 RPM, and comes complete with pneumatically retractable vacuum hood.

CNC Tool Calibration


Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

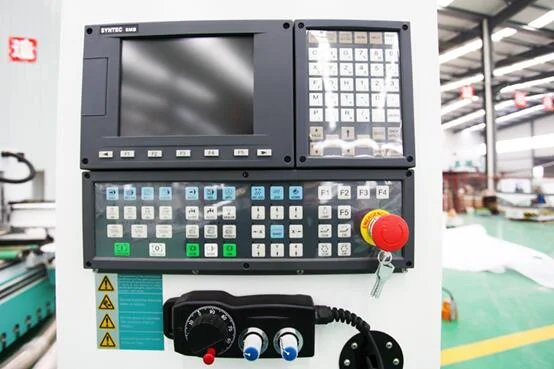

CONTROL SYSTEM «SYNTEC» (TAIWAN)

One of the most accessible and reliable control systems. It is still installed even on metalworking machines of some
series. Full support for 3D processing, the function "LookAhead", the ability to edit and create programs directly from the machine, a simple and intuitive graphical interface of the system provide high performance and quality of the product, a short setup time and ease of management. The presence of interfaces USB, Ethernet greatly increases the convenience of connecting various external devices, and also allows you to connect the machine to the local network of the enterprise.

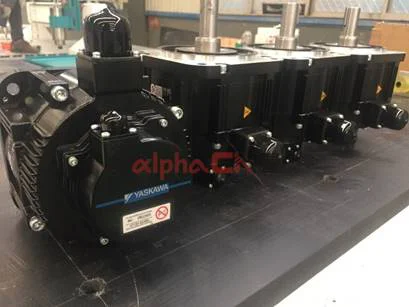

SERVOMOTORS "YASKAWA" (JAPAN)

Installed on each node to move in the X, Y and Z, provide a high-precision positioning of spindle (to 0.001 mm) in accordance with a predetermined program at high travel speed to 45 m/min, these motors are well proven high degree of reliability and stability even in harsh conditions. This type of servo motors used in high speed machines of the heavy series, and 5 axis machines.

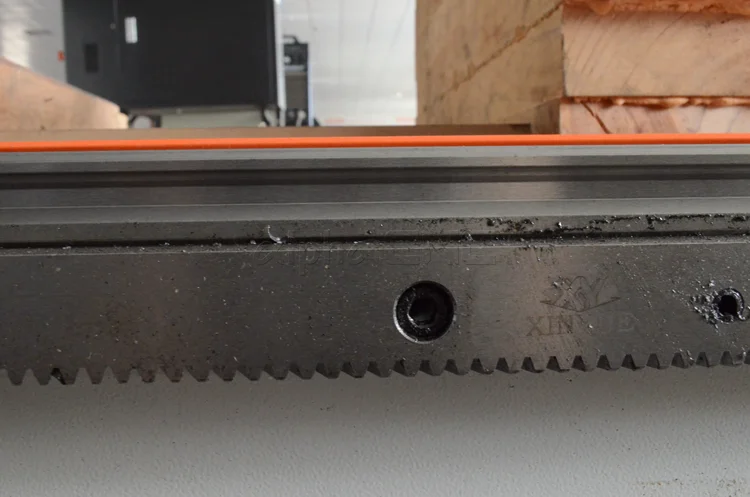

XYZ Axis Hiwin Square Rail& XY Axis helical rack and pinion

The machine adopts Taiwan Hiwin square rail, which is twice durable. And the use of high quality helical rack and pinion, makes the machine with faster moving speed and high precision.


Z Axis Hiwin Square Rail& High precision TBI ball screw

 Thball screw is famous brand TBI, it is high precision and durable .

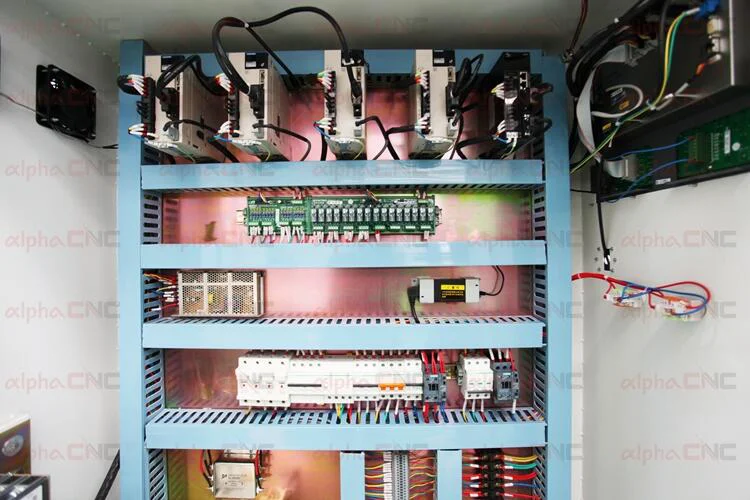

The Electronics of the CNC Router

All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet.


Vectric Aspire Software

Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.


Accessory box

The machine comes with a complete set of accessories, including wrench, brush, tool holder, data cable, water pump, manual tools, software, flush disk, to make sure you can use the machine directly once you get the machine.


Optional Parts

DSP hand controller

It is a off line control system, and very easy to operate.




Dust Collector

3kw double bags dust collector, which is powerful enough for collect the. It will make your workshop without dust.

Oil mist Coolant System

The  Oil mist Coolant System is ideal for coolant tools for cutting metal. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
1500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
