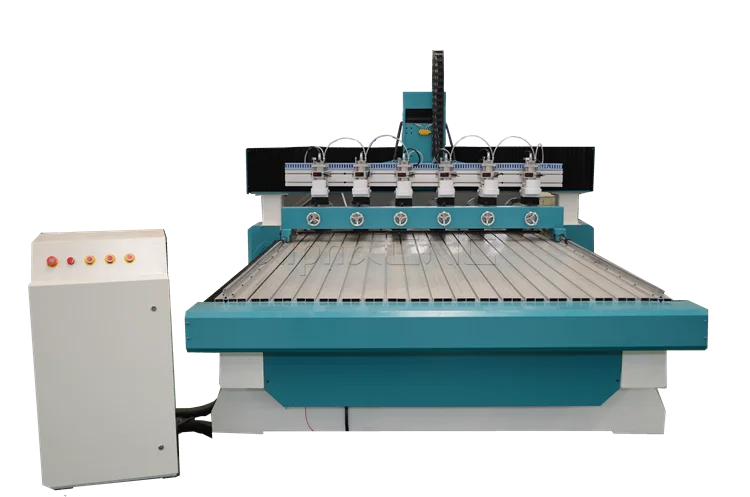

The Alpha ABMR SERIES CNC Router is the perfect solution for applications requiring board process and the cylindrical 3d sculpture. Whether you need to route an intricate 3D carving on a cylindrical surface or index a part by rotating it a set number of degrees, the Alpha 4th axis upgrade will prove to be a valuable tool. Companies can increase their production by vast numbers without having to invest in numerous machines. The machine can install multiple spindle and rotary axis, high efficiency , apply to large number of repetitive work, such as chair and table legs, furniture decoration. The machine can process: acrylic, wood, plastic, epoxy resin, ABS, PP, PE, PVC, MDF, organic glass, plastic. The machine can be used in sign industry, photo industry, decoration industry, craft gift industry, furniture, and many other industries.
※High frequency 2.2 kw spindle ※Rotary axis diameter 0-100mm, 0-150mm，0-200mmf or option ※T-slot table ※Mach 3 controller ※Brushless micro-stepper motors ※XYZ axis Hiwin Square rail ※Z axis High precision Ballscrew
2.2KW variable speed(3.5kw 4.5kw, 6kw, 7.5kw for option)
Please kindly note the above configuration is standard configuration.
Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.
2.2kw High Frequency Spindle
The ABR CNC Router machine comes standard with 2.2kw high frequency spindle Fully programmable speeds from 6000 to 18000 RPM, and comes complete with pneumatically retractable vacuum hood.

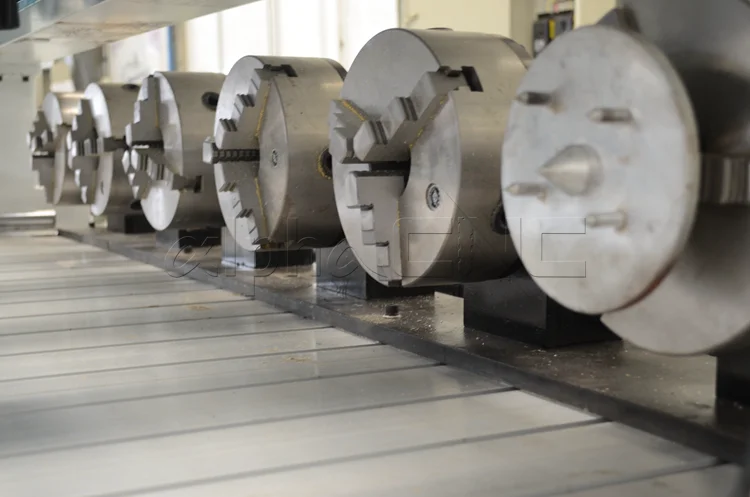

Comes complete with a 3-jaw chuck and tail stock. Linear guide track for easy tail stock movement and center alignment The addition of Alpha's 4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.
Mach 3 controller(Ethernet)
Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code.
The ABR series CNC Router utilizes brushless micro-stepper motors. These motors require no regular maintenance, therefore reducing any maintenance downtime.
The machine adopts Taiwan Hiwin square rail, which is twice durable. And the use of high quality helical rack and pinion, makes the machine with faster moving speed and high precision.
Z Axis Hiwin Square Rail& High precision TBI ball screw The ball screw is famous brand TBI, it is high precision and durable.
CNC Tool Calibration
Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.
The Electronics of the CNC Router
All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet.
Vectric Aspire Software
Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.
The machine comes with a complete set of accessories, including wrench, brush, tool holder, data cable, water pump, manual tools, software, flush disk, to make sure you can use the machine directly once you get the machine.
DSP hand controller
It is a off line control system, and very easy to operate.
3kw double bags dust collector, which is powerful enough for collect the. It will make your workshop without dust.
Oil mist Coolant System
The Oil mist Coolant System is ideal for coolant tools for cutting metal. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
3200 (L) * 2300 (W) * 1900 (D)
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.
