220V 380V 415V Multi Spindle Cnc Aluminum Carving Router

FOB Reference Price:Get Latest Price
$4,800.00 - $7,800.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Model Number:
AMS-1530-3
Voltage:
220V/380V/Customer made
Dimension(L*W*H):
3200*1840*1900mm
Certification:
CE ISO9001
Control system:
DSP/NC STUDIO/MACH 3
Spindle:
1.5kw*3/ 2.2KW*3
Application:
MDF WOOD ACRYLIC ALUMINUM
Motor:
STEPPER MOTOR
Spindle power:
1.5kw or 2.2KW
Driving system:
YAKO 2811
Software:
ARTCAM/ASPIR/JD PAINT
Inverter:
DELTA
Spindle speed:
0-24000RPM
Keywords:
CNC ROUTER
Weight:
1500kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power(W):
2.2KW*4
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
the laser machine packed in a plywood case
Port
Qingdao
Lead Time :
in 10 working days
Product Description

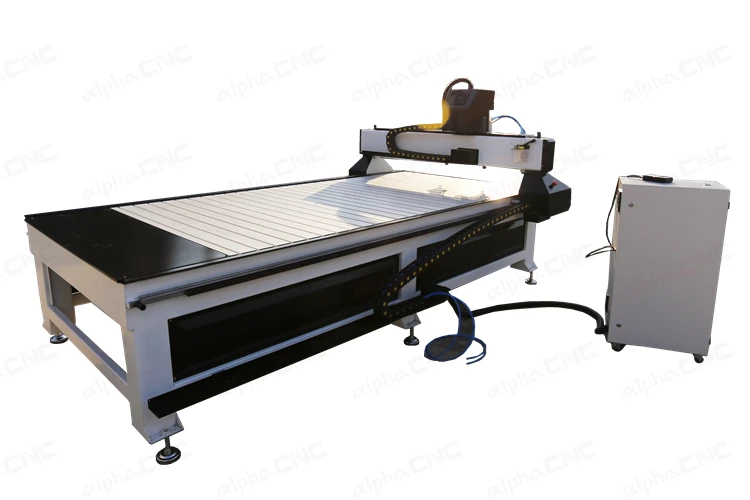

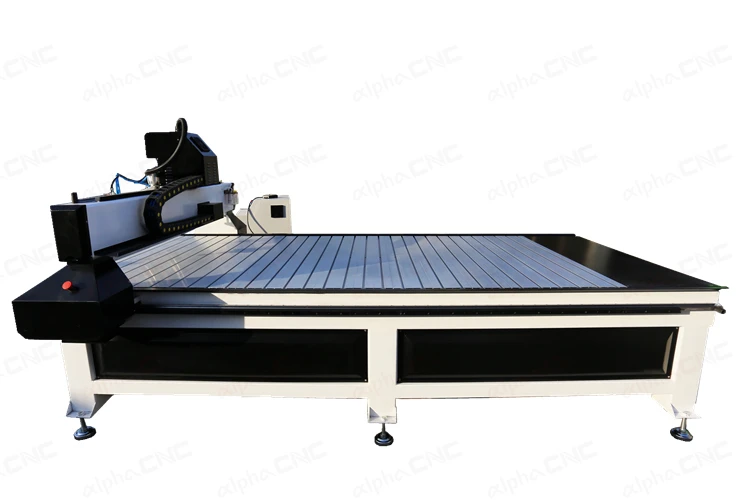

220V 380V 415V Multi Spindle Cnc Aluminum Carving Router

Product Application

* BPM Series CNC Router is with multi-spindle, and all the spindles can work simultaneously. This machine is with high        efficiency.
* It is perfect for doing mass duplication work, one machine is equal to 4 sets of machine.
* It can process wood, MDF, particleboard, plywood, acrylic, plastic, soft metal and many other different materials.

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Main Features---cnc aluminum carving router

※ 2-10 pcs spindle

※ 2.2KW high frequency spindle
※ Height adjustable spindle
※ T-slot table
※ Easy to use Mach 3 Controller
※ Brushless micro-stepper motors
※ Hiwin square rail

Descriptions
                                                                     Parameters
Model
AMS-1325
AMS-1530
AMS-2030
AMS-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
T-slot Aluminum and PVC
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
50000mm/min
Max. Working Speed
20000mm/min
Spindle Power
1.5kw(2.2kw, 3.2kw)
Spindle Speed
0-24000RPM
Drive Motors
Stepper motor and driver(Servo motor optional)
Working Voltage
Custom made
Command Language
G Code
Operating System
Mach 3 control system(DSP NC-STUDIO optional)
Computer Interface
USB interface
Inverter
Fuling (Taiwan DELTA Optional)
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Sample
Customer
Detailed Images

Base Frame:

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

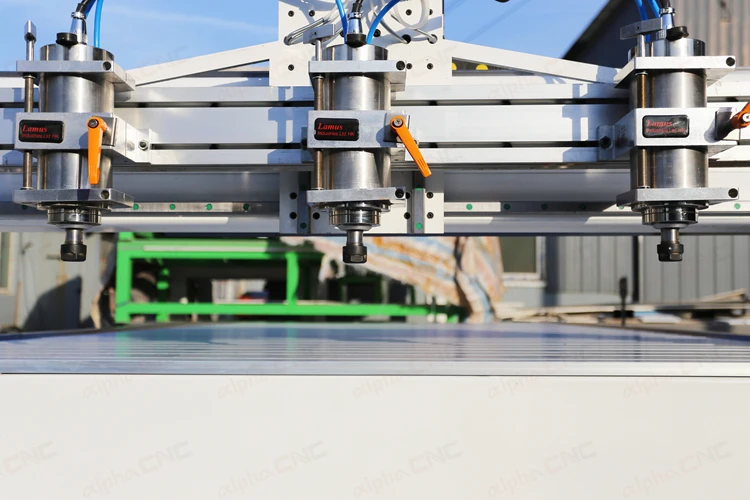

1.5KW/2.2KW Height adjustable High Frequency Spindle

The multi-spindle CNC Router machine comes standard with 1.5kw/2.2kw height adjustable high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

Drive Motors

The BETA Series CNC Router utilizes brushless micro-stepper motors. These motors require no regular maintenance, therefore reducing any maintenance downtime.

Hiwin Square Rail&High Quality Helical Rack Pinion

Hiwin square rail is more than twice durable. And the use of high quality helical rack pinion, makes it high precision.

CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

T-slot aluminum and PVC table

The T-slot thick aluminum and PVC table can fix any size of different kinds of materials, and it is hard to become deformation.

Mach 3 Controller

Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.

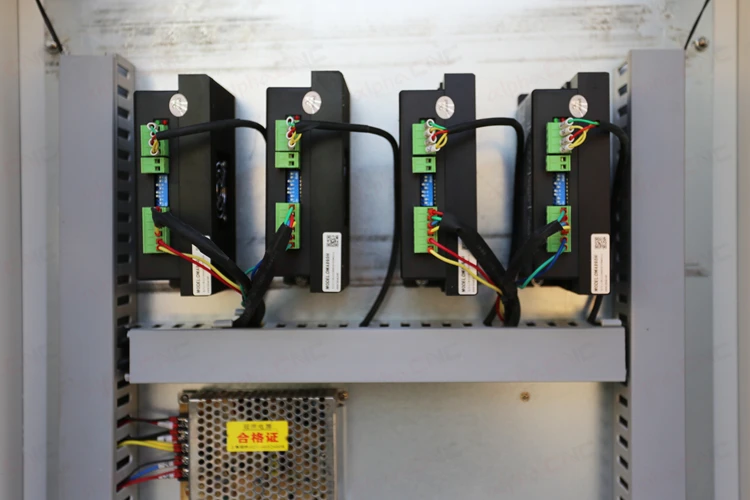

Electrical components

The Beta CNC Router
All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

Vectric Aspire Software

Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.

Optional Parts

Oil mist Coolant System

The  Oil mist Coolant System is ideal for coolant tools for cutting metal.  The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

4-Axis Rotary Axis

The addition of  4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

Dust collector

Big dust collector with 2 bags, which is powerful enough for collect the. It will make your workshop without dust.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
2000KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
