2040 2030 2000*4000mm 2000*3000mm Italy HSD Spindle Japan Yaskawa Servo Motor DSP Controller CNC Router for Iraq Middle East

FOB Reference Price:Get Latest Price
$6,000.00 - $12,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Model Number:
ABS-2040
Voltage:
220V/380V
Dimension(L*W*H):
3200*1840*1900mm
Certification:
CE ISO9001
Control system:
DSP/Mach3/Nc-studio
Spindle:
Air Cooling/Water Cooling
Application:
MDF/ WOOD /ACRYLIC / SOFT METAL
Motor:
Japan Yaskawa Servo Motor /Stepper motor
Spindle power:
3kw/4.5kw/6kw
Driving system:
Japan Yaskawa/Leadshine/Yako
Software:
ARTCAM/ Vectric Aspire
Inverter:
Delta/ Fuling/Sunfar
Spindle speed:
0-24000RPM
Keywords:
cnc router
Weight:
1000kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1Years
Power(W):
3kw/4.5kw/6kw
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
CNC Router packed in a plywood case
Port
Qingdao
Lead Time :
10 Working Days
Product Description

2040 2030 2000*4000mm 2000*3000mm Italy HSD Spindle Japan Yaskawa Servo Motor DSP Controller CNC Router for Iraq Middle East

Product Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Introduction

The High Quality ABS Series CNC Router features all steel construction, powerful spindle, precision Hiwin linear rails and bearings, German precision helical racks on the X and Y axes, with TBI ballscrew Z axis drive, Japan Yaskawa Servo motors. Controls with a very easy-to-use DSP controller. The controller is so user-friendly that setup, installation and training is completed through our self-taught, step-by-step manuals. We guarantee you will be cutting parts the same day you connect power to the machine!

Main Features

1300*2500mm, 1500*3000mm, and 2000*3000mm, and 2000*4000mm standard sizes (Special sizes available upon request.)
3.2kw-7.5kw high-frequency collet spindle for option
Japan Yaskawa Servo Motor 850w
Automatic tool calibration easy and accurate “Z” zero tool changes
Aluminum T-Slot table
Easy to use DSP controller Open architecture works with all industry standard CAD/CAM software

ADescriptions
                                                                     Parameters
Model
ABS-1325
ABS-1530
ABS-2030
ABS-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
T-slot  (or T-slot Table& vacuum table )
Frame
Thicken steel square tube structure
X, Y Structure
Gear and rack transmission, Taiwan HIWIN linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Max. Rapid Travel Rate
50000mm/min
Max. Working Speed
25000mm/min
Spindle Power
6kw HSD spindle(3kw, 4.5kw for option)
Spindle Speed
0-24000RPM
Drive Motors
Japan Yaskawa (Stepper Motor for option)
Working Voltage
AC220V/50/60Hz,1PH (Option: 380V/415V/220V 3phase)
Command Language
G Code
Operating System
DSP (MACH 3 or Nc-studio for option)
Computer Interface
USB interface
Inverter
Taiwan DELTA (Fuling for option)
Software
ARTCAM/ Vectric Aspire

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Sample
Detailed Images

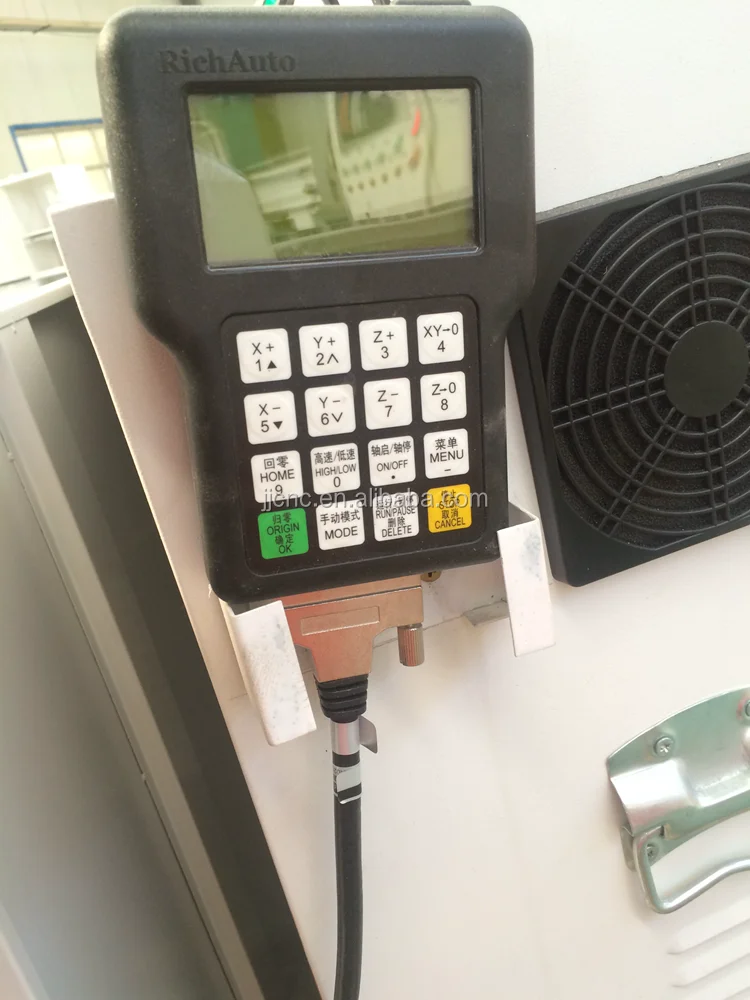

DSP Remote Controller

The heart of the machine is a easy to use Hand-held DSP Controller. The hand-held controller is so user-friendly that setup, installation and training is completed through our self-taught, step-by-step manuals. Every command is very easy to read, understand, and execute. We guarantee you will be cutting parts the same day you connect power to the machine!

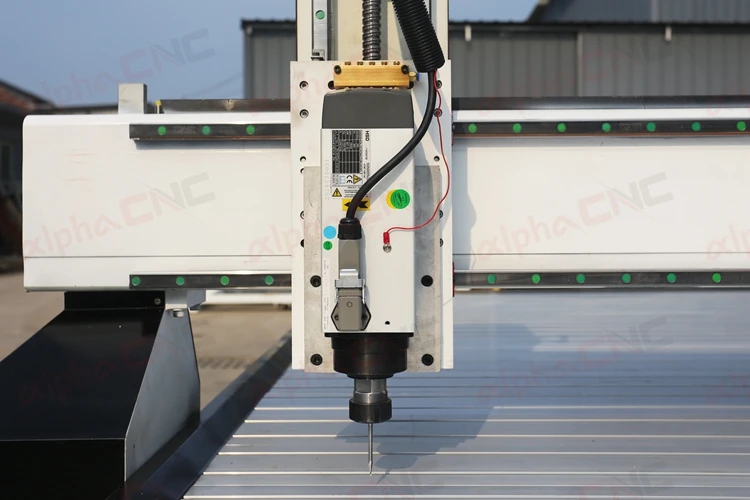

Italy HSD 6KW Powerful spindle


The High quality Alpha ABS series CNC Router machine comes with a 6kw high frequency spindle. This precision spindle requires no maintenance. Fully programmable speeds from 6000 to 18000 RPM, more powerful and less noise.

Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

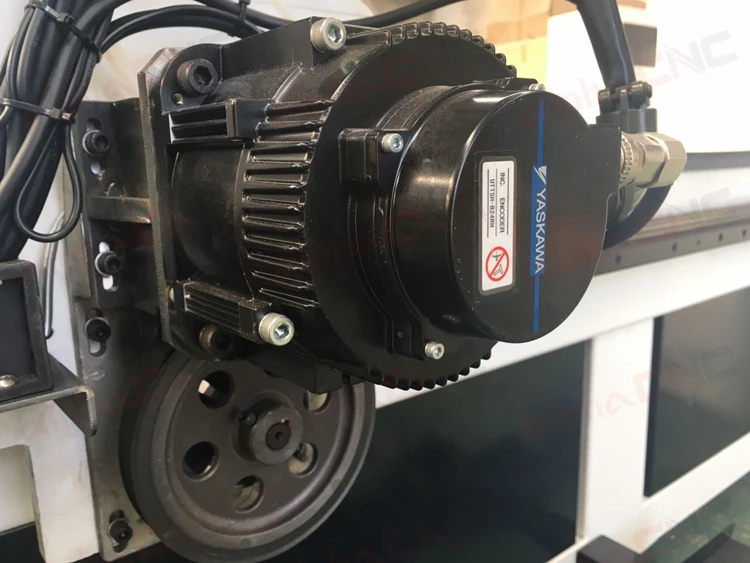

Drive Motors

The 850w Yaskawa motor and 1kw driver is powerful enough for the machine moving at fast speed.

Automatic tool calibration

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

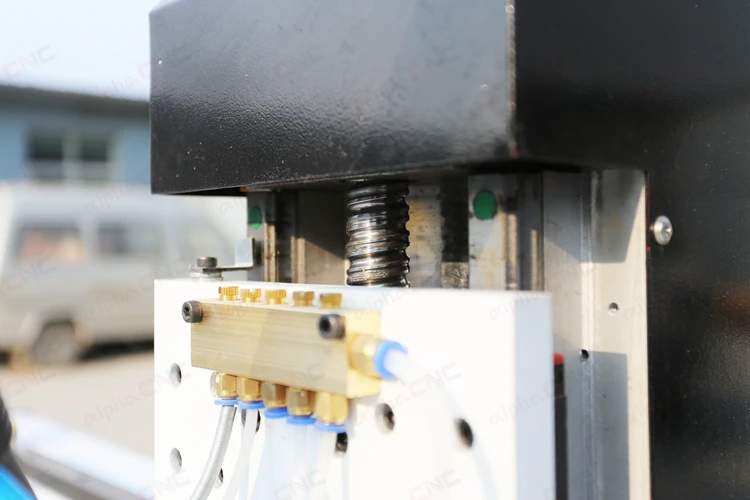

Z axis TBI ballscrew transmission

Imported high quality TBI ballscrew, which is high-precision, durable, long service life.

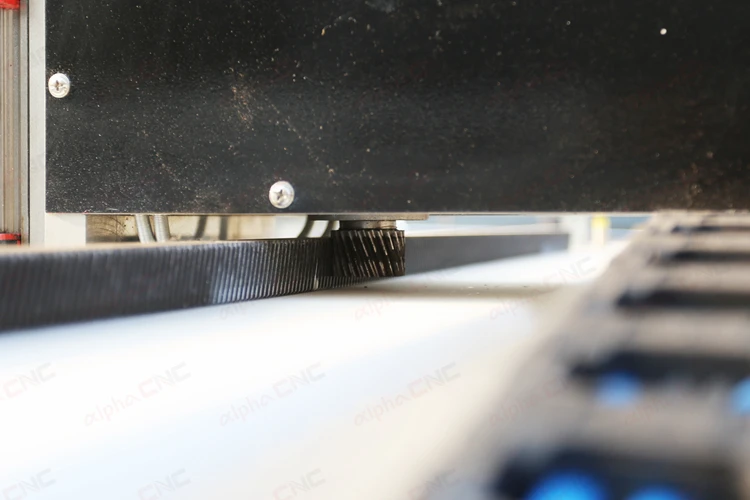

X Y Axis Helical gear rack

High hardness material, after strict heat treatment, high strength,  not easy to wear, not easy to deformation, to ensure the high speed of the machine.

Optional Parts

 Vacuum pumps

Alpha offers air vacuum pumps which are economical and practical

4-Axis Rotary Axis

The addition of  4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

Dust collector

Alpha offers 2 bags powerful vacuum cleaner, to ensure a clean and tidy workshop.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Exhibition
Customer Visiting
Packing & Delivery
Packaging
Size
3200 (L) * 2250 (W) * 1900 (D)
Weight
1500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
