ATC automatic loading panel woodworking Cabinet Version software nesting machine for wood cnc router 1325

FOB Reference Price:Get Latest Price
$8,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
AIS-1325-L AIS-2030-L AIS-1530-L AIS-2040-L
Lead Time:
Quantity(Sets) 1 - 5 6 - 20 >20
Est. Time(days) 20 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Furniture
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Voltage:
380V/220V or Customer made
Dimension(L*W*H):
4200*2300*1900mm
Certification:
CE ISO9001
Warranty:
2 Years
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Control system:
Syntec
Spindle:
Italian HSD 9.6kw air cooling spindle
Application:
MDF WOOD ACRYLIC ALUMINUM
Motor:
YASKAWA DEGITAL SERVO MOTOR
Driving system:
YASKAWA Servo System
Software:
Cabinet Version/ARTCAM/ASPIR
Inverter:
DELTA/FULING
Spindle speed:
0-24,000RPM
Key word:
ATC CNC Router
Power(W):
25kw
Weight:
2000kg
Packaging & Delivery
Packaging Details
Plywood Package
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 6 - 20 >20
Est. Time(days) 20 30 To be negotiated
Video Description
Product Description
ATC automatic loading panel woodworking ATC cnc router Cabinet Version software nesting machine for cabinet cnc nesting machine.

High Efficiency!!
How high efficiency the machine is? How many worker the machine need?
1 Person+8 Hour+1 Machine = 60~80 pieces of board.

Product Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Main Features

※12-Position rotary tool carousel
※  Automatic loading&unloading system
※  Italian HSD 9.6kw air cooling spindle
※  Japan Yaskawa servo motor
※ Taiwan Delta inverter
※ Japan Shimpo gear reducer
※ German WMH Herion helical rack pinion
※ 5.5kw TongYou vacuum pump(German Becker for option)
※  Taiwan Hiwin or PMI square rail 30mm
※ Pneumatic material placement stops
※ Double layer vacuum table
※ Automatic tool calibration pad
※Taiwan AirTAC electromagnetic valve-
※ German Igus cable

Descriptions
                                                                     Parameters
Model
AIS-1325-L
AIS-1530-L
AIS-2030-L
AIS-2040-L
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail 30mm width
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
60000mm/min
Max. Working Speed
25000mm/min
Spindle Power
Italy HSD9kw(China HQD or CC Spindle  for Optional)
Spindle Speed
0-24000RPM
Drive Motors
Japan Yaskawa servo motor and driver(Delta, Leadshine optional)
Working Voltage
Custom made
Command Language
G Code
Operating System
Taiwan SYNTEC
Computer Interface
USB interface
Collet
ISO30
Inverter
Fuling or Taiwan DELTA 11kw
Software
Cabinet Version/Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

1325 4*8 feet wood panel mdf particleboard door cabinet furniture aluminum woodworking cutting milling carving ATC cnc router
Sample
Detailed Images

CNC Tool Rotary Carousel magazine

The AIS Series machine includes an 16-position rotary carousel that moves with the machine while the gantry travels. The use of a carousel speeds up tool changes assuring faster cycle times increasing production capability.

 Automatic loading&unloading system


Faster loading and unloading, saving labor costs

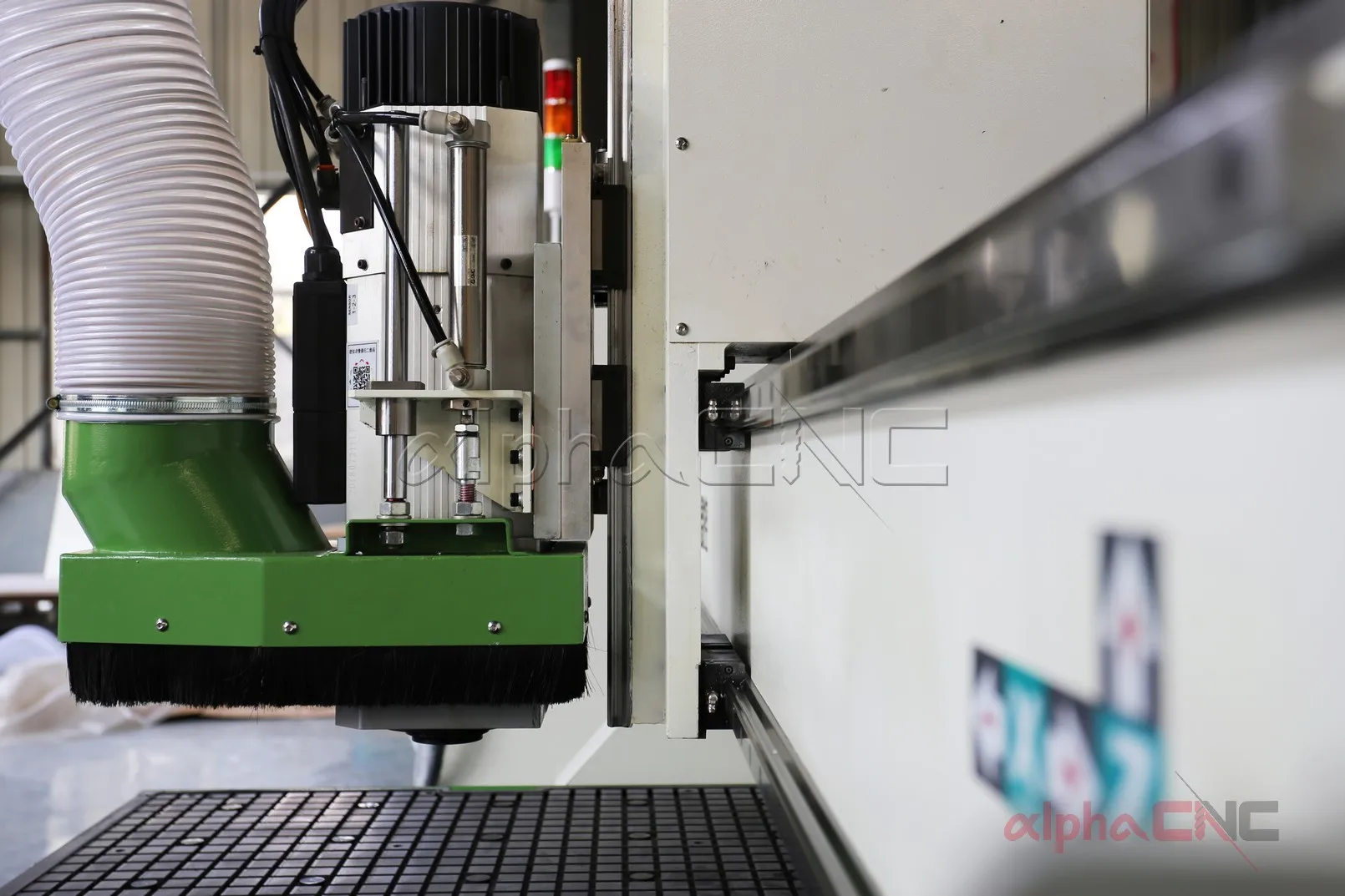

9kw High Frequency Automatic Tool Changer Spindle


The Alpha ATC CNC Router machine comes standard with a 9kw high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.


Drive Motors

Brand: Yaskawa  Servo Motor
Origin: Japan

The Alpha ATC Series CNC Router utilizes digital AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance - therefore, reducing any maintenance downtime.

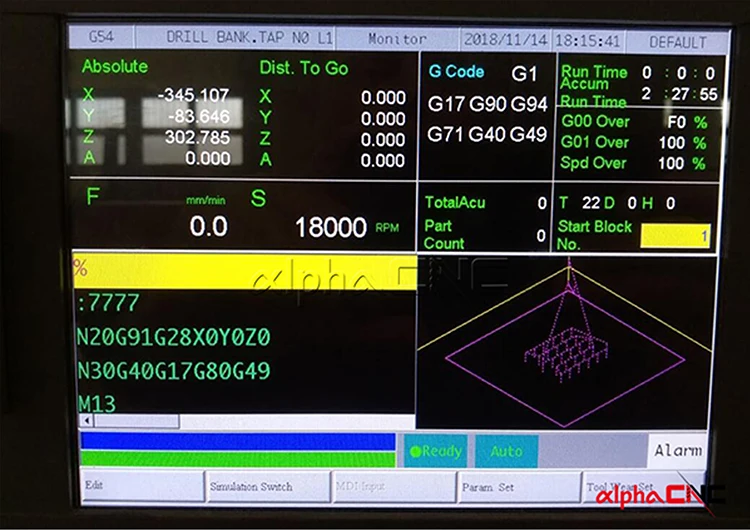

Taiwan Syntec FC-60WA Serial controller

 New Model with Big Screen, bus communication, support high resolution axis motor, simple distribution, easily install, better performance


CNC Tool Calibration


Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

Pneumatic Material Alignment Stops



The Alpha Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.

PMI square rail&High quality helical rack pinion

The machine adopts Taiwan PMI square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.


Automatic lubrication system


The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail, ballscrew and the rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.


Optional Parts


Becker Rotary Vane vacuum pumps

Alpha offers Becker Rotary Vane vacuum pumps which are quiet, clean, and require minimal maintenance.

4-Axis Rotary Axis

The addition of  4-axis rotary table assembly adds greater functionality to the machine's capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

HSD Aggregate Tool

Alpha CNC offers the HSD Aggregate Tool. Aggregate heads allow you to expand the capabilities of your CNC Router.

Our Certificates
Packing & Delivery
Packaging
Size
4200 (L) * 2280 (W) * 2100 (D)
Weight
2500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!

FAQ.

Q1: This is the first time I buy the machine, is it easy to operate?

We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.

Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!

Q6. What's your date of delivery?
For standard machine, about 15 working days; For customized machine, about 20 working day.

Q7.MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
